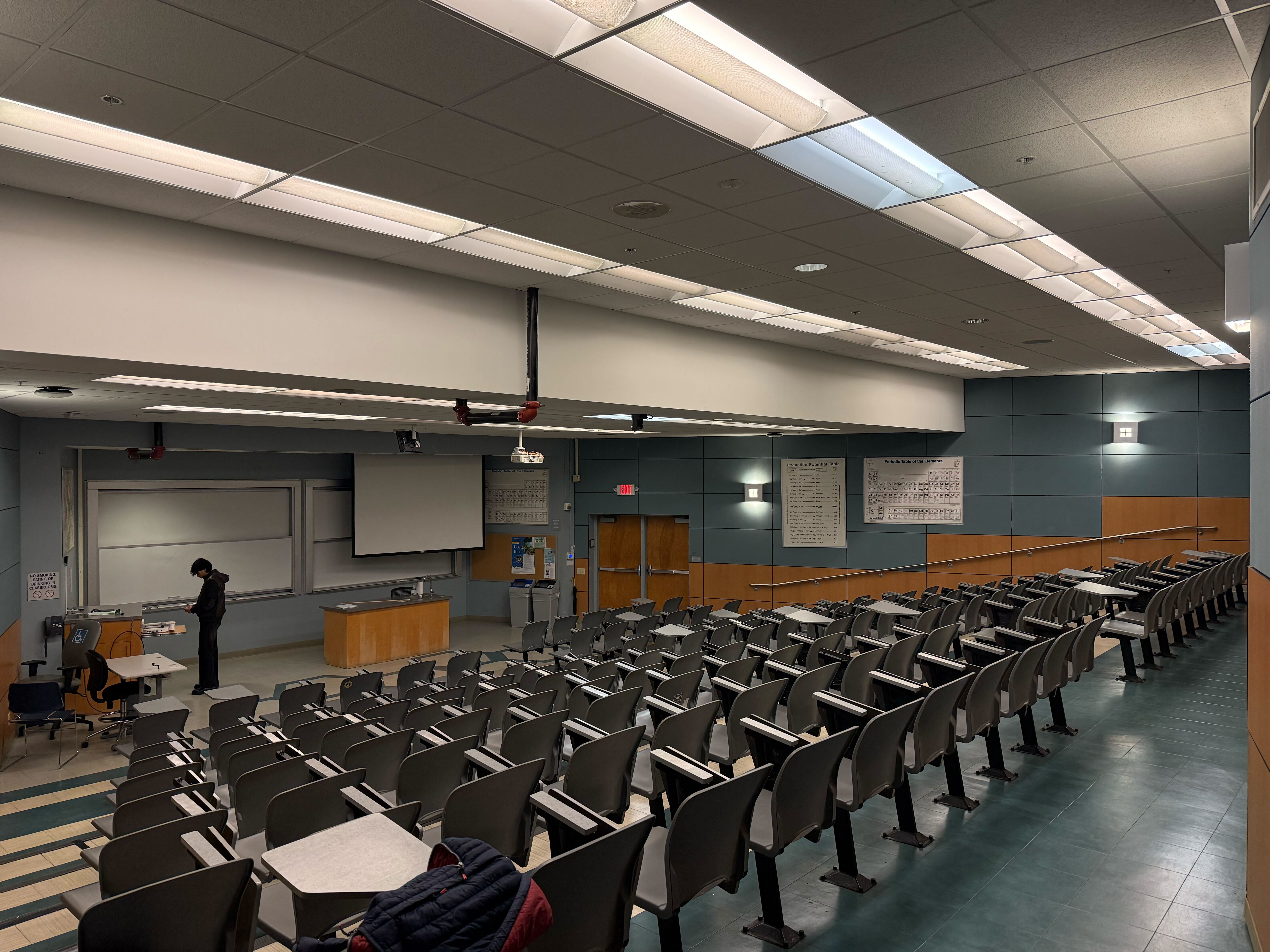

Room SCI 101
Basic Information
- Room Type
- Lecture Hall
- Building
- Science
- Scheduled By
- Academic Resources
- Supported By
- Academic Technology
- Capacity
- 146
- Support Information
- For more information about this room, contact Academic Technology at at@sfsu.edu or via phone at (415)405-5555
Images
Computer Ports & Adapters

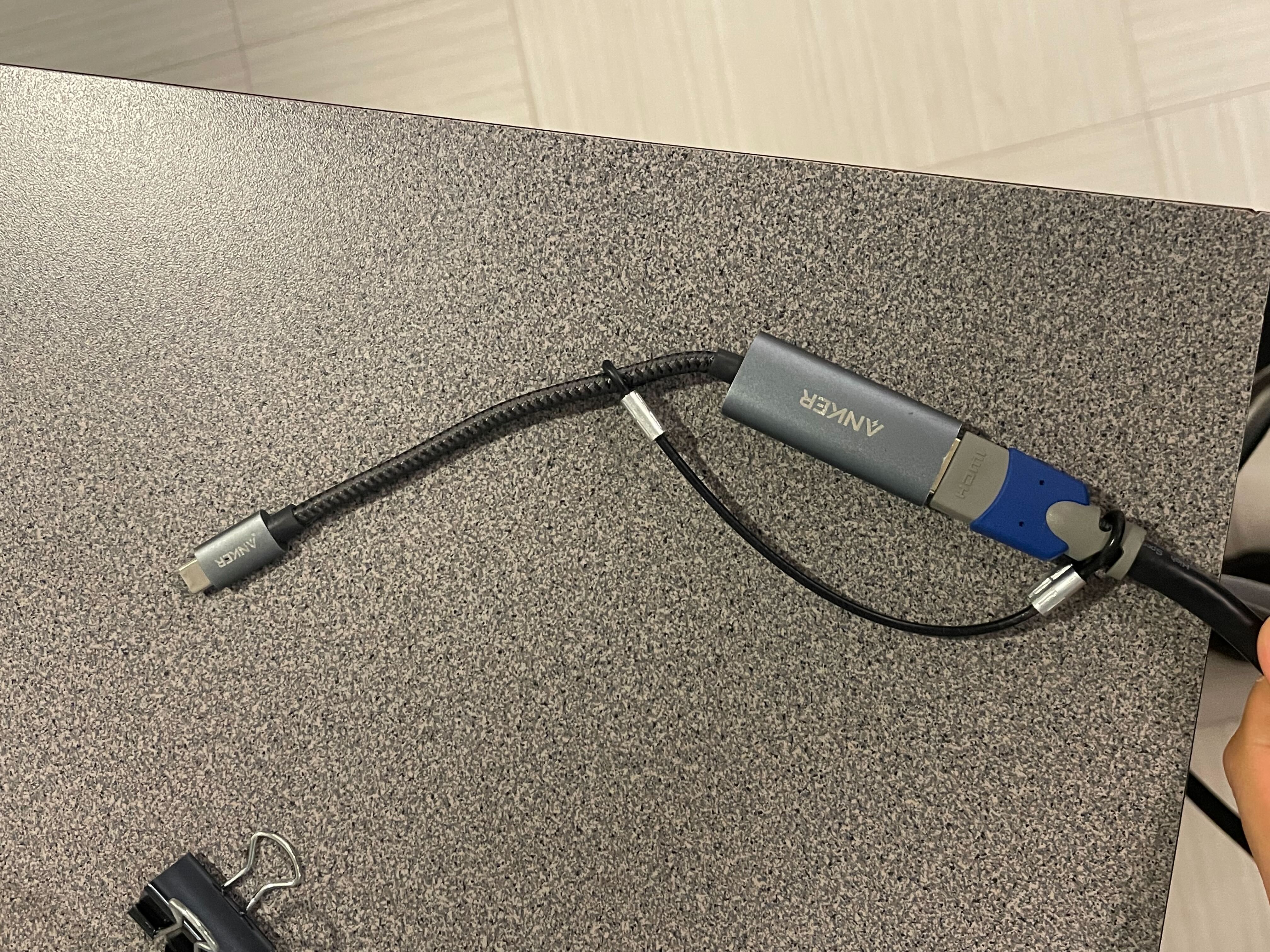

In this room you can connect your computer via HDMI. A usb-c to HDMI adapter is provided in the room. Older computers without USB-C and without HDMI built-in can check out an adapter from Academic Technology in LIB 80.
| If your computer has... | Adapter for HDMI |
|---|---|
HDMI
|
— None — |
USB-C
|
— None — |
Mini DisplayPort
|
MiniDP to HDMI
|
Audio & Visual Equipment
| A/V Equipment | In Room? | Notes |
|---|---|---|
LCD Projector
|
||
LCD TV
|
||
VCR/DVD
|
||
HDMI
|
A usb-c to HDMI adapter is provided in the room. Older computers without USB-C and without HDMI built-in can check out an adapter from Academic Technology in LIB 80. |
|
Mic
|
Microphone equipped rooms have in-room amplification |
|

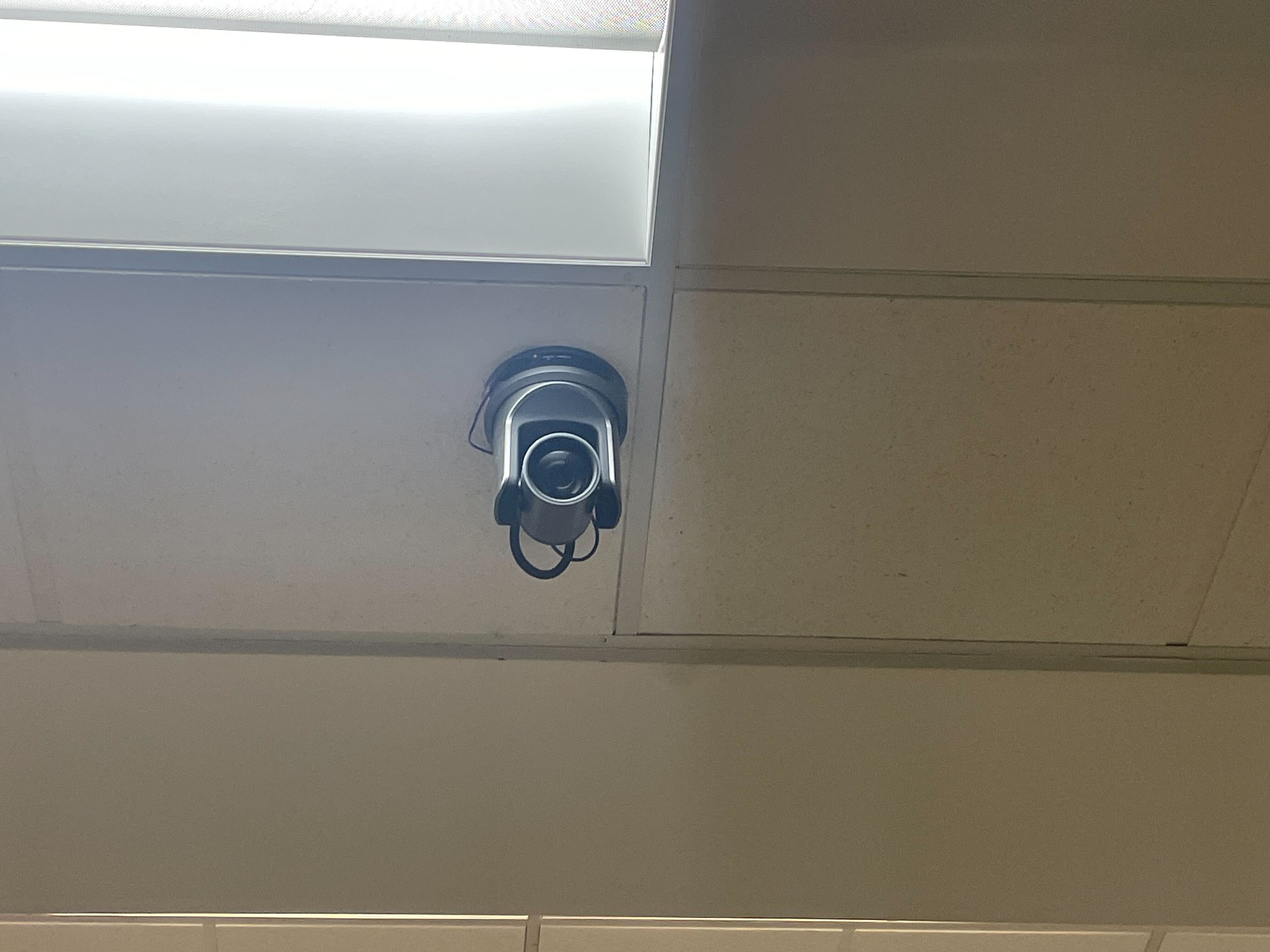

CourseStream
|
If you would like to record your class, email at@sfsu.edu and include your class name and section and the dates and times your class meets. |
|
Doc Cam
|
||
Zoom Enabled
|
||
Blu-ray
|
TURNING ON THE SYSTEM

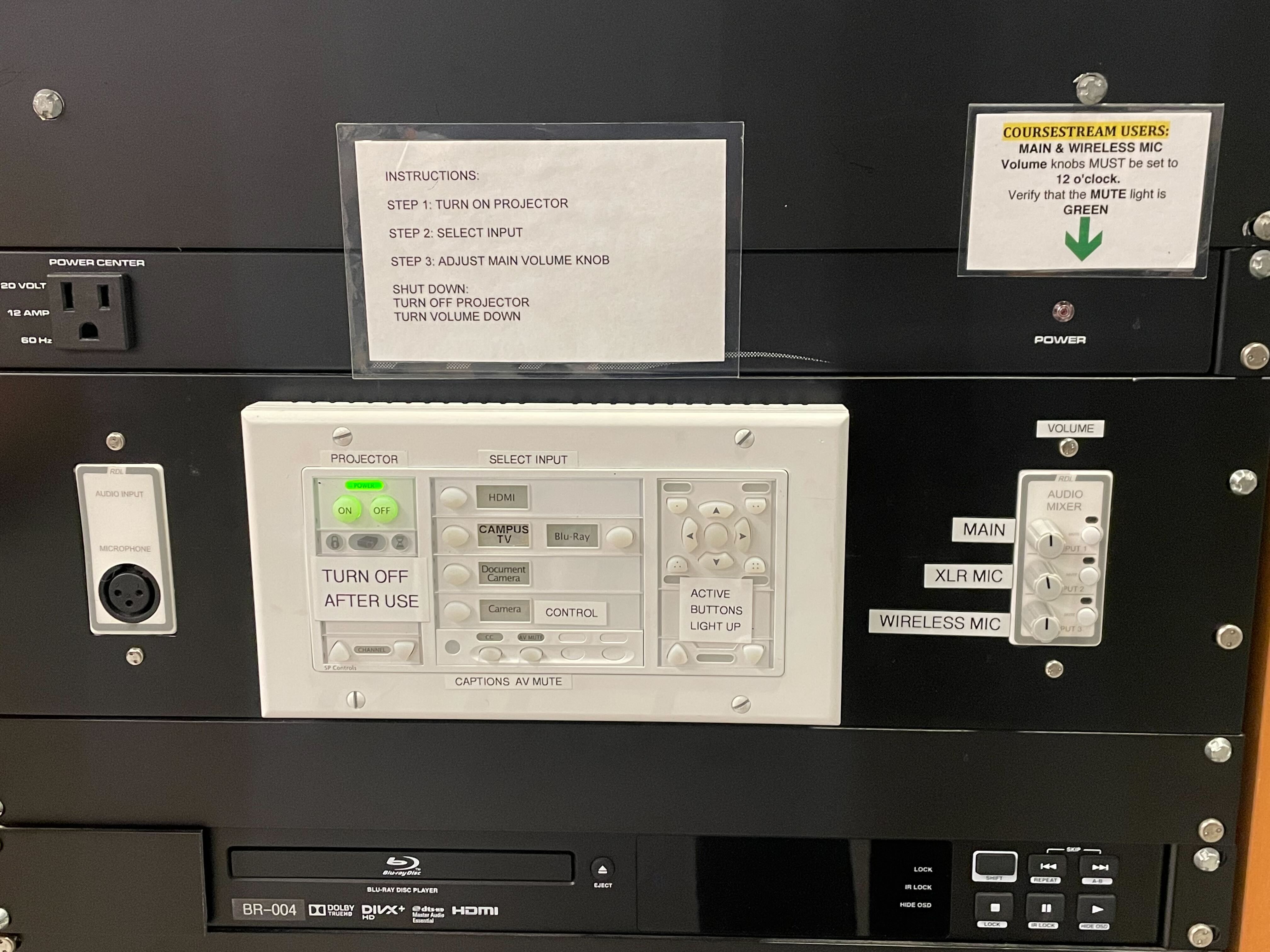

STEP 1: Press the ON button at the top left corner of the Pixie Pro panel
STEP 2: Panel will light up; ceiling projector will be on after 30-seconds. Fully wait for projector to warm up before proceeding.
CONNECTING A LAPTOP: HDMI
STEP 1: At the top-middle of the Pixie Pro panel, press the source button labeled HDMI
STEP 2: Connect the HDMI (small trapezoid) cable to laptop (respective laptops may require adapters).
STEP 3: For audio volume, toggle the knob labeled MAIN on the left audio control panel.
The light next to the knob must be GREEN. If RED, press the button underneath.
Mac: COMMAND + F1 (COMMAND + dim brightness on macs with a touchbar)
USING THE BLU-RAY/DVD PLAYER
STEP 1: At the middle of the Pixie Pro panel, press the source button labeled BLU-RAY.

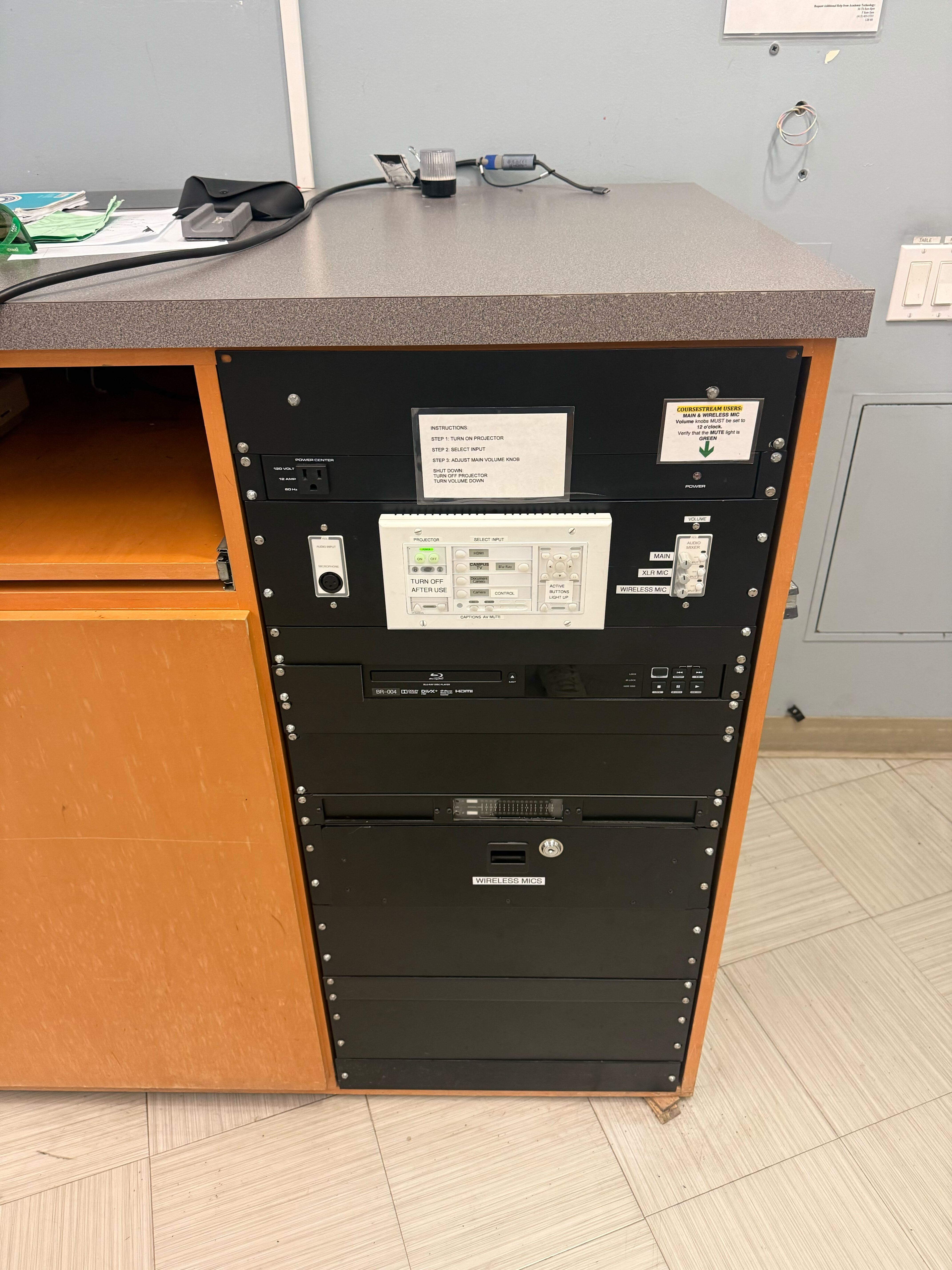

STEP 2: Inside the cabinet, turn on Blu-ray player. Insert media (Blu-ray or DVD discs) and press play.
STEP 3: For audio volume, toggle the knob labeled MAIN on the left audio control panel.
The light next to the knob must be GREEN. If RED, press the button underneath.
EXTRA STEP: To toggle within a Blu-ray/DVD disc menu, use the arrow keys on the right of the Pixie Pro panel:
USING THE DOCUMENT CAMERA
STEP 1: At the middle of the Pixie Pro panel, press the source button labeled DOCUMENT CAMERA.

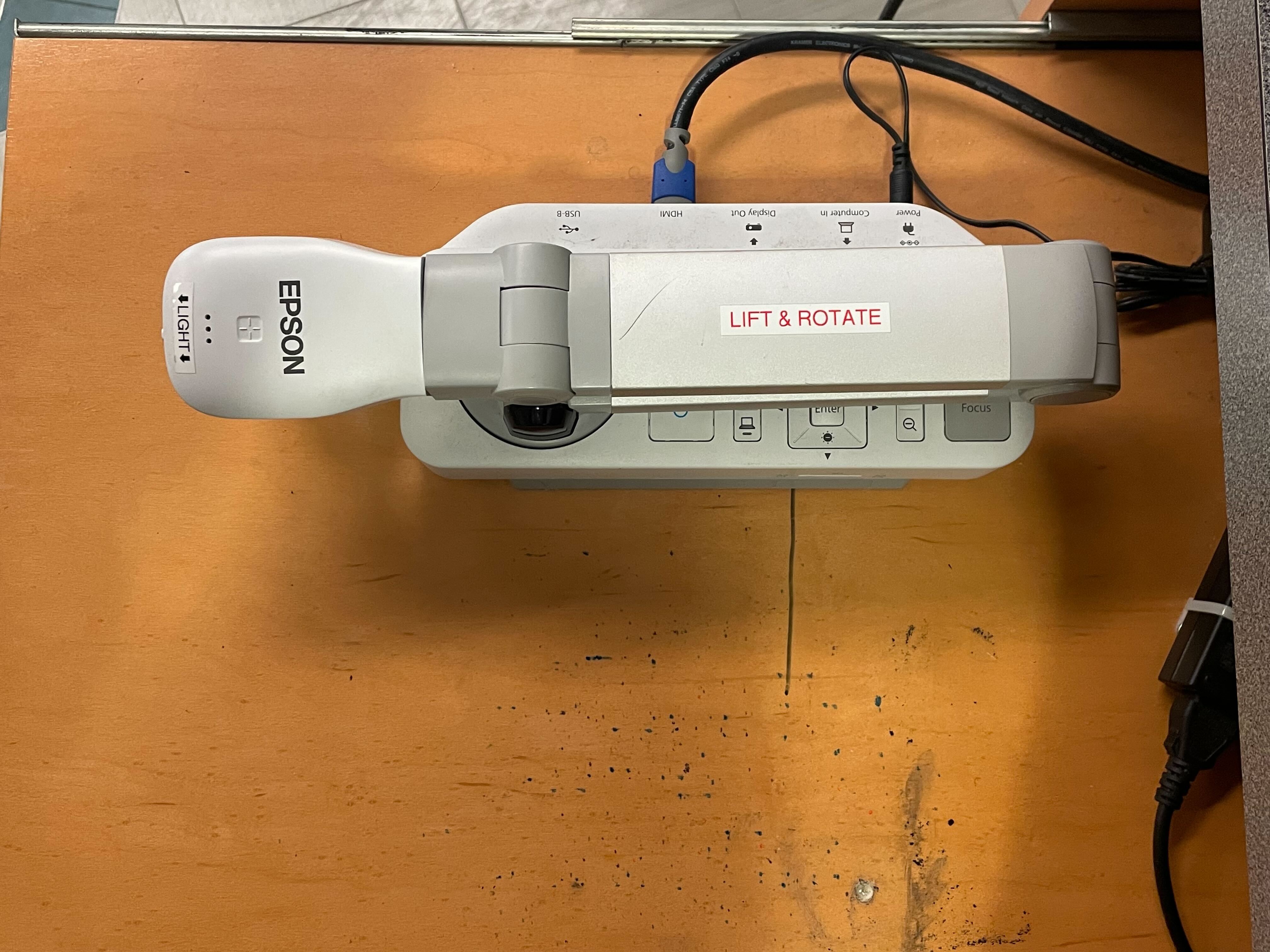

STEP 2: Document camera is located on a sliding tray on the right side of the cabinet.
Slide out the tray, swing open the camera arm, and press the power button.
STEP 3: Place desired item on the wooden surface to project onto the screen.
USING THE WIRELESS MIC

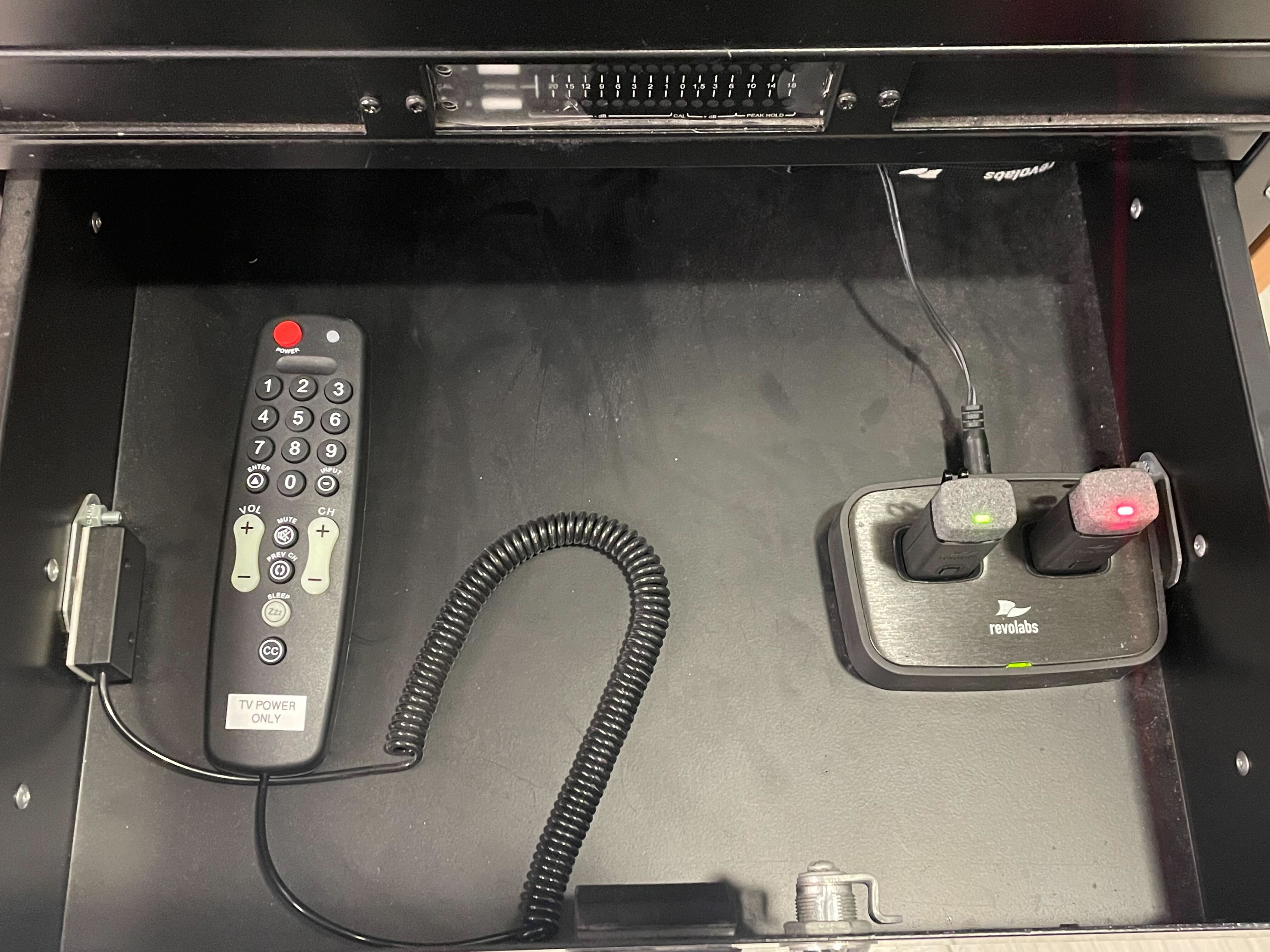

STEP 1: Open the bottom drawer; the wireless mics will be inside:
STEP 2: Removed a mic from the base. Wait for the LED light on top to flash RED.
STEP 3: Press the lone button on the mic body. The LED light will flash GREEN. The mic is now ON.
STEP 4: For audio volume, toggle the knob labeled WIRELESS MIC on the left audio control panel.
The light next to the knob must be GREEN. If RED, press the button underneath.
Request Additional Help:
M-Th 8am-8pm
F 8am-5pm
(415) 405-5555
LIB 80
