Room HUM 213
Basic Information
- Room Type
- Lecture
- Building
- Humanities
- Scheduled By
- LCA
- Supported By
- Academic Technology
- Capacity
- 50
- Support Information
- For more information about this room, contact Academic Technology at at@sfsu.edu or via phone at (415)405-5555
Images
Computer Ports & Adapters
In this room you can connect your computer via HDMI. A usb-c to HDMI adapter is provided in the room. Older computers without USB-C and without HDMI built-in can check out an adapter from Academic Technology in LIB 80.
| If your computer has... | Adapter for HDMI | Adapter for VGA |
|---|---|---|
HDMI
|
— None — |
HDMI to VGA
|
USB-C
|
— None — |
USB-C to VGA
|
Mini DisplayPort
|
MiniDP to HDMI
|
MiniDP to VGA
|
Audio & Visual Equipment
| A/V Equipment | In Room? | Notes |
|---|---|---|

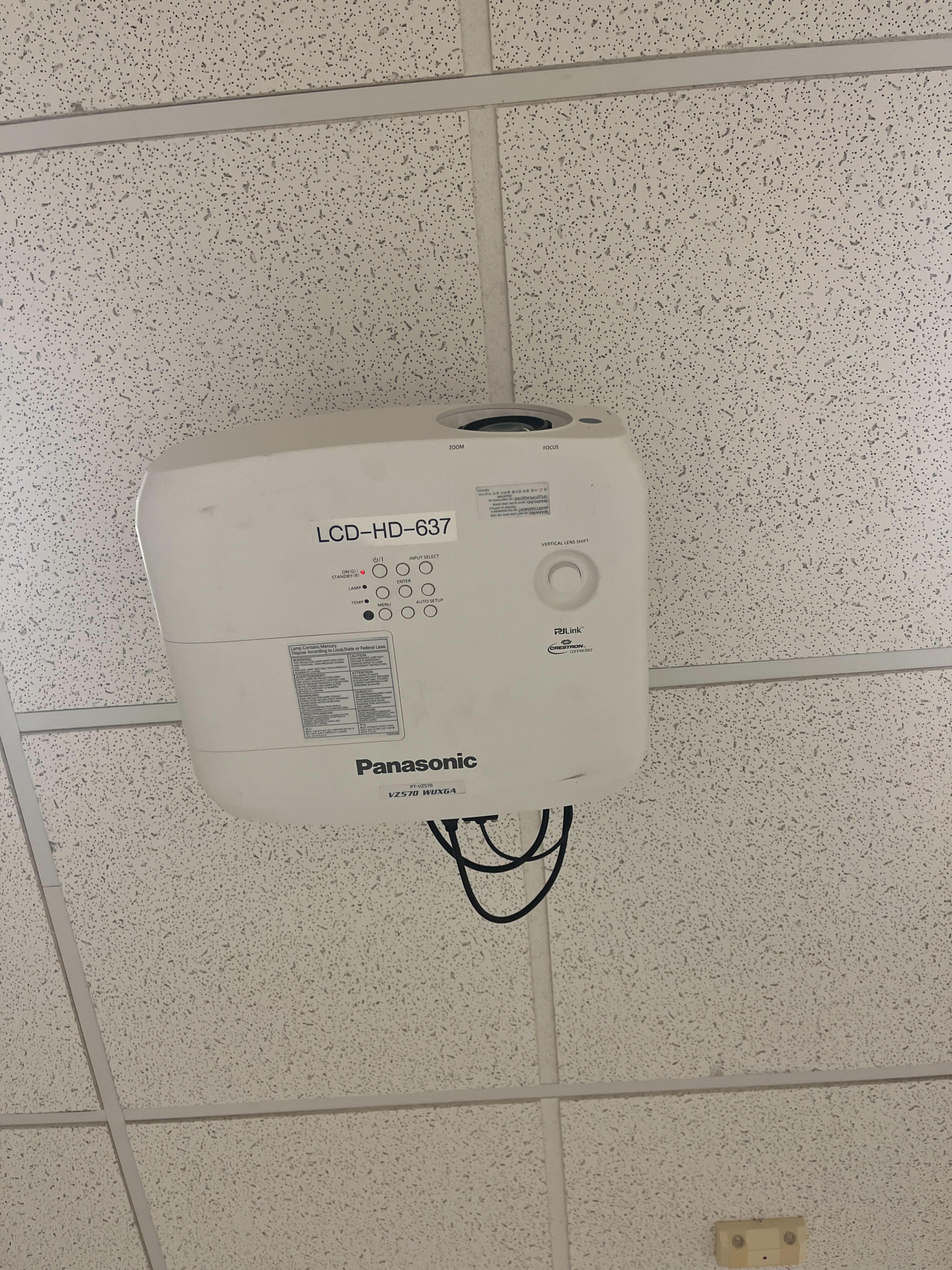

LCD Projector
|
||
LCD TV
|
||
VCR/DVD
|
||
HDMI
|
A usb-c to HDMI adapter is provided in the room. Older computers without USB-C and without HDMI built-in can check out an adapter from Academic Technology in LIB 80. |
|
Mic
|
||
CourseStream
|
||
Doc Cam
|
||
Zoom Enabled
|
||
Blu-ray
|

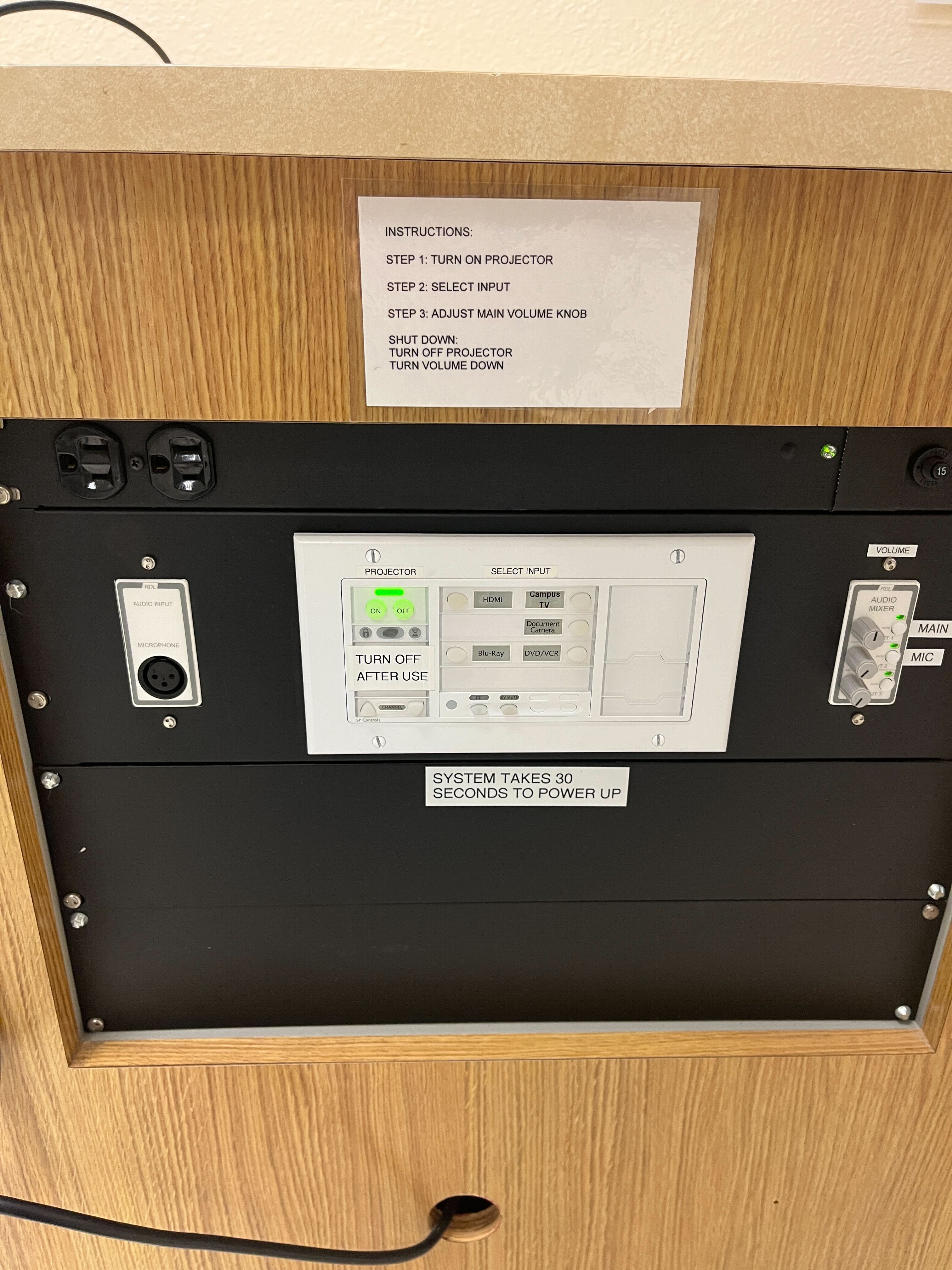

TURNING ON THE SYSTEM
STEP 1: Press main power switch above control panel
STEP 2: Press the ON button at the top left corner of the Pixie Pro panel Panel will light up; ceiling projector will be on after 30-seconds. Fully wait for projector to warm up before proceeding.
CONNECTING A LAPTOP: VGA OR HDMI
STEP 1: At the middle of the Pixie Pro panel, press the appropriate source button when using:
VGA cable: VGA or LAPTOP
HDMI cable: HDMI
STEP 2: Connect VGA (15-pin) or HDMI (small trapezoid) cable to laptop (respective laptops may require adapters).
(When using VGA, plug the attached audio-cord into laptop's headphone jack for sound)
STEP 3: For audio volume, toggle the knob labeled MAIN on the left audio control panel.
The light next to the knob must be GREEN. If RED, press the button underneath.
Mac: COMMAND + F1 (COMMAND + dim brightness on macs with a touchbar)
Windows: WINDOWS SYMBOL + P, then select DUPLICATE
RECEIVING CABLECAST
STEP 1: At the middle of the Pixie Pro panel, press the source button labeled CAMPUS TV or TUNER.
STEP 2: Select the desired cable channel using the channel UP/DOWN buttons on the bottom left of the Pixie Pro panel.
Verify the channel at the top of the projected image.
STEP 3: For audio volume, toggle the knob labeled MAIN on the left audio control panel.
The light next to the knob must be GREEN. If RED, press the button underneath.
STEP 4: Call x15103 to start the cablecast.
USING THE VCR/DVD PLAYER
STEP 1: At the middle of the Pixie Pro panel, press the source button labeled DVD/VCR.
STEP 2: Inside the cabinet, turn on VCR/DVD combo player. Insert media and press play.
STEP 3: For audio volume, toggle the knob labeled MAIN on the left audio control panel.
The light next to the knob must be GREEN. If RED, press the button underneath.
USING THE BLU-RAY PLAYER
STEP 1: At the middle of the Pixie Pro panel, press the source button labeled BLU-RAY.
STEP 2: Inside the cabinet, turn on Blu-ray player. Insert media and press play.
STEP 3: For audio volume, toggle the knob labeled MAIN on the left audio control panel.
The light next to the knob must be GREEN. If RED, press the button underneath.
USING THE DOCUMENT CAMERA
STEP 1: At the middle of the Pixie Pro panel, press the source button labeled DOCUMENT CAMERA.
STEP 2: Document camera is located on a sliding tray inside the cabinet. Slide out the tray, erect the arms, and press the power button.
STEP 3: Place desired item on the surface of the document camera to project onto the screen.
Request Additional Help:
M-Th 8am-8pm
F 8am-5pm
(415) 405-5555
LIB 80
