Room HUM 133
Basic Information
- Room Type
- Lecture
- Building
- Humanities
- Scheduled By
- LCA
- Supported By
- Academic Technology
- Capacity
- 133
- Support Information
- For more information about this room, contact Academic Technology at at@sfsu.edu or via phone at (415)405-5555
Images
Computer Ports & Adapters
In this room, you can connect your computer to HDMI ports. Make sure you have the right adapter(s) before coming to class. Please note that the adapters in this table are just examples. Adapters vary by brand, color, shape, etc.
| If your computer has... | Adapter for HDMI |
|---|---|
USB-C
|
USB-C to HDMI
|
Mini DisplayPort
|
MiniDP to HDMI
|
HDMI
|
— None — |
VGA
|
— None — |
Audio & Visual Equipment
| A/V Equipment | In Room? | Notes |
|---|---|---|
LCD Projector
|
||
LCD TV
|
||
VCR/DVD
|
||
HDMI
|

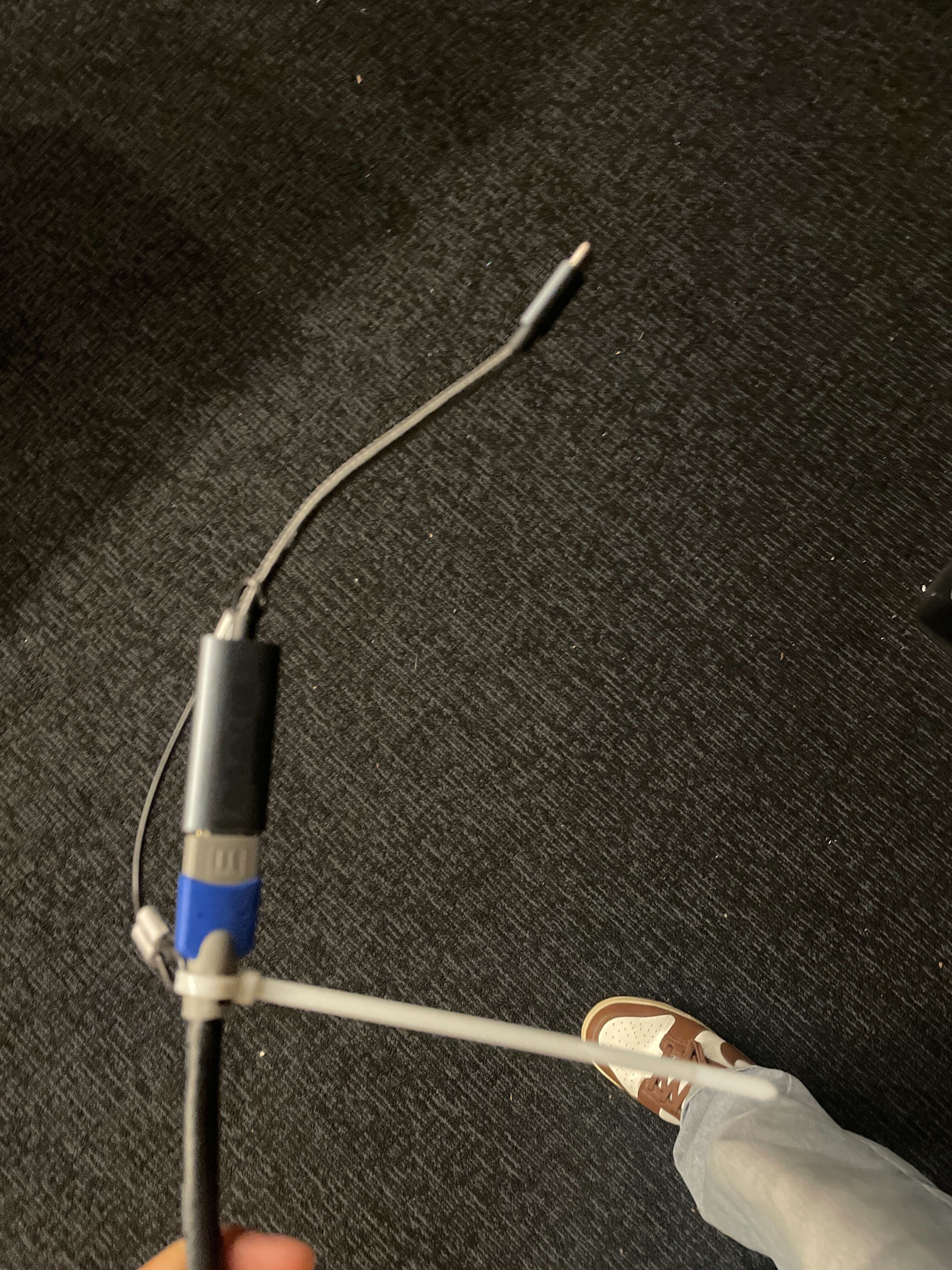

A usb-c to HDMI adapter is provided in the room. Older computers without USB-C and without HDMI built-in can check out an adapter from Academic Technology in LIB 80. |
|
VGA
|
||
Mic
|
Microphone equipped rooms have in-room amplification |
|
CourseStream
|
||
Doc Cam
|
||
Zoom Enabled
|
||
Blu-ray
|
TURNING ON THE SYSTEM

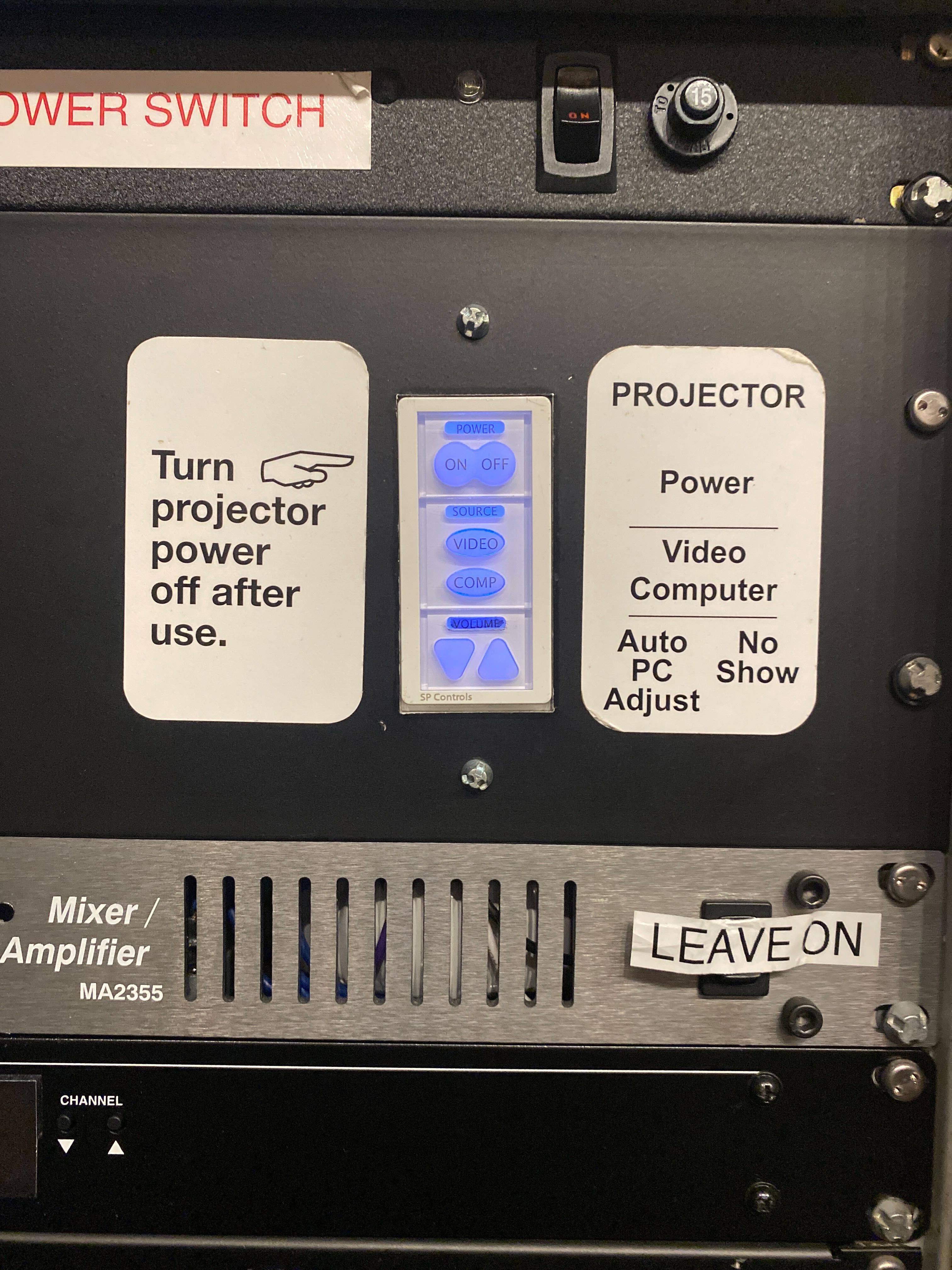

STEP 1: Turn on the main power-switch.
STEP 2: On the projector control panel, press ON once, and wait 60 seconds.
CONNECTING A LAPTOP: VGA
STEP 1: On the projector control panel, press COMP.
STEP 2: Connect VGA (15-pin) cable to laptop (respective laptops may require adapters).
Plug the attached audio-cord into laptop's headphone jack for sound.
STEP 3: To get audio, turn on the amplifier. Make sure LEFT OUTPUT and RIGHT OUTPUT is at 12'o clock position.
Adjust volume via the COMPUTER AUDIO knob.
Mac: COMMAND + F1 (COMMAND + dim brightness on macs with a touchbar)
Windows: WINDOWS SYMBOL + P, then select DUPLICATE
RECEIVING CABLECAST
STEP 1: On the projector control panel, press VIDEO.
STEP 2: On the video switcher, press in the white square labeled CABLE TV.
STEP 3: Turn on the amplifier. Make sure LEFT OUTPUT and RIGHT OUTPUT is at 12'o clock position.
Adjust volume via the MAIN AUDIO knob.
STEP 4: Select the desired cable channel on the Pico cable tv tuner.
STEP 5: Call x15103 to start the cablecast.
USING THE VCR/DVD PLAYER
STEP 1: On the projector control panel, press VIDEO.
STEP 2: On the video switcher, press in the white square labeled VCR/DVD.
STEP 3: Turn on the amplifier. Make sure LEFT OUTPUT and RIGHT OUTPUT is at 12'o clock position.
Adjust volume via the MAIN AUDIO knob.
STEP 4: Turn on VCR/DVD combo player. Insert media and press play.
USING THE WIRELESS MIC
STEP 1: Open the bottom drawer; the wireless mics will be inside:
STEP 2: Removed a mic from the base. Wait for the LED light on top to flash RED.
STEP 3: Press the lone button on the mic body. The LED light will flash GREEN. The mic is now ON.
STEP 4: Turn on the amplifier. Make sure LEFT OUTPUT and RIGHT OUTPUT is at 12'o clock position.
Adjust volume via the WIRELESS MIC knob.
Request Additional Help:
M-Th 8am-8pm
F 8am-5pm
(415) 405-5555
LIB 80
