Room HSS 154
Basic Information
- Room Type
- Lecture
- Building
- Health & Social Services
- Scheduled By
- Academic Resources
- Supported By
- Academic Technology
- Capacity
- 132
- Support Information
- For more information about this room, contact Academic Technology at at@sfsu.edu or via phone at (415)405-5555
Images
Computer Ports & Adapters
In this room you can connect your computer via HDMI. A usb-c to HDMI adapter is provided in the room. Older computers without USB-C and without HDMI built-in can check out an adapter from Academic Technology in LIB 80.
| If your computer has... | Adapter for HDMI |
|---|---|
HDMI
|
— None — |
USB-C
|
— None — |
Mini DisplayPort
|
MiniDP to HDMI
|
Audio & Visual Equipment
| A/V Equipment | In Room? | Notes |
|---|---|---|
LCD Projector
|
||
LCD TV
|
||
VCR/DVD
|
||
HDMI
|
A usb-c to HDMI adapter is provided in the room. Older computers without USB-C and without HDMI built-in can check out an adapter from Academic Technology in LIB 80. |
|
Mic
|
Microphone equipped rooms have in-room amplification |
|
CourseStream
|
||
Doc Cam
|
||
Zoom Enabled
|
||
Blu-ray
|
Video Tutorial
TURNING ON THE SYSTEM
STEP 1: Press the ON button at the top left corner of the Pixie Pro panel
STEP 2: Panel will light up; ceiling projector will be on after
30-seconds. Fully wait for projector to warm up before proceeding.
ADJUSTING MICROPHONE VOLUME
CONNECTING A LAPTOP: HDMI
STEP 1: At the top-middle of the Pixie Pro panel, press the source button labeled HDMI
STEP 2: Connect the HDMI (small trapezoid) cable to laptop (respective laptops may require adapters).
STEP 3: For audio volume, toggle the knob labeled MAIN on the left audio control panel.
The light next to the knob must be GREEN. If RED, press the button underneath.
Mac: COMMAND + F1 (COMMAND + dim brightness on macs with a touchbar)
Windows: WINDOWS SYMBOL + P, then select DUPLICATE
USING THE BLU-RAY/DVD PLAYER
STEP 1: At the middle of the Pixie Pro panel, press the source button labeled BLU-RAY.
STEP 2: Inside the cabinet, turn on Blu-ray player. Insert media (Blu-ray or DVD discs) and press play.
STEP 3: For audio volume, toggle the knob labeled MAIN on the left audio control panel.
The light next to the knob must be GREEN. If RED, press the button underneath.
EXTRA STEP: To toggle within a Blu-ray/DVD disc menu, use the arrow keys on the right of the Pixie Pro panel:
USING THE DOCUMENT CAMERA
- At the middle of the Pixie Pro panel, press the source button labeled DOCUMENT CAMERA.
- Document camera is located on a sliding tray on the right side of the cabinet. Slide out the tray, swing open the camera arm, and press the power button.
- Place desired item on the wooden surface to project onto the screen.
Using the in-room Zoom equipment

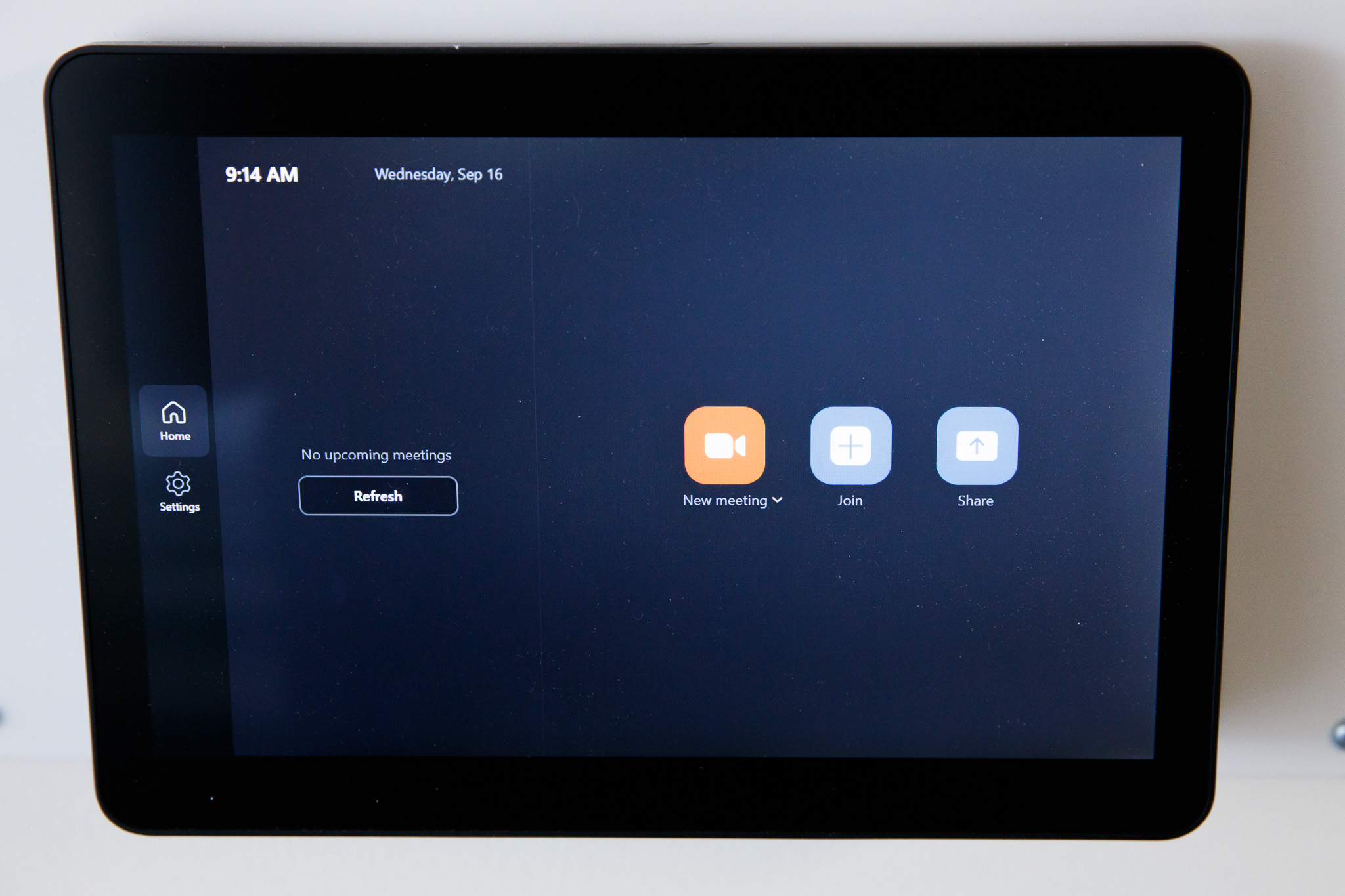

Joining a meeting
- On the touch panel, tap + Join

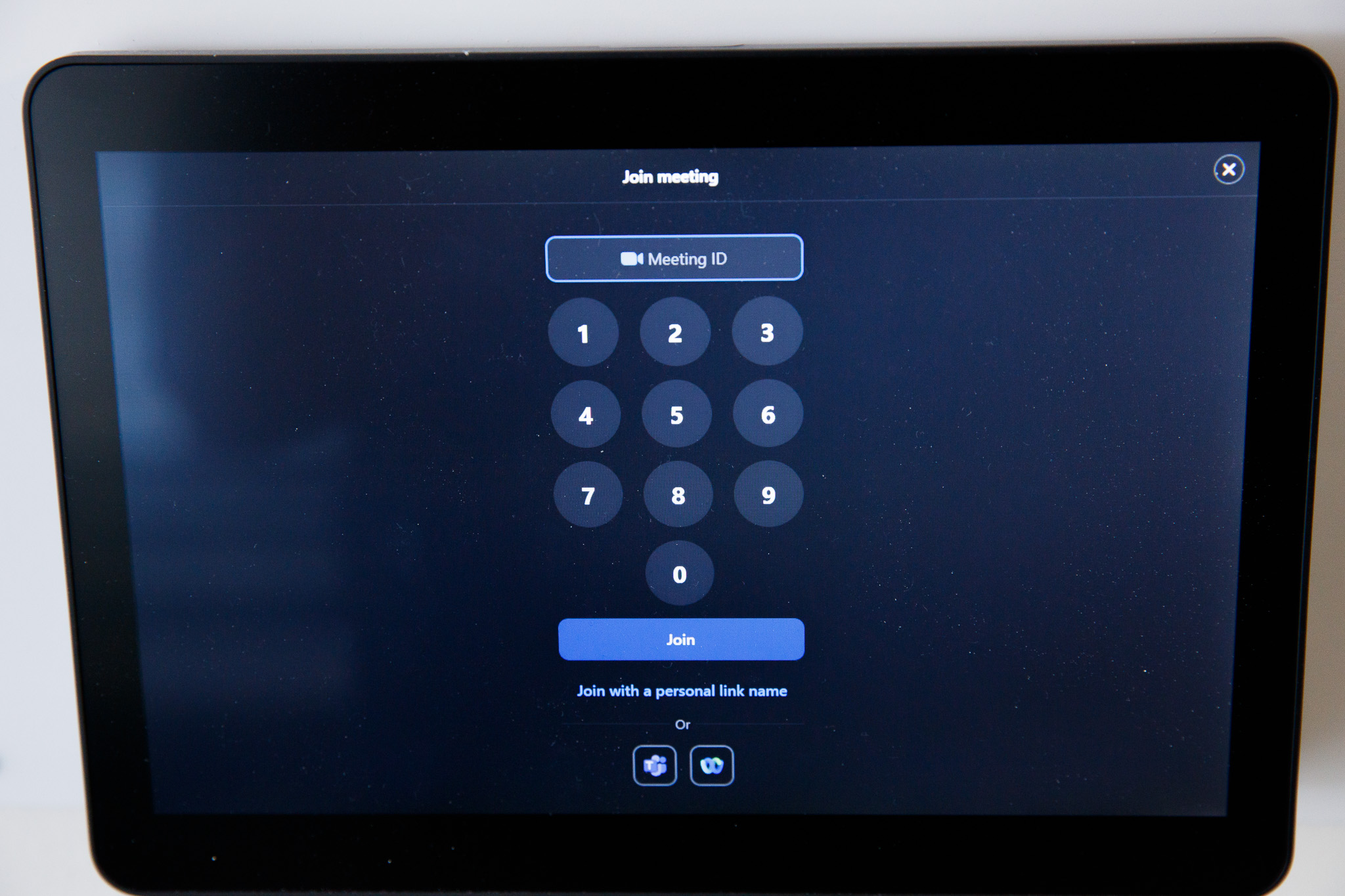

- When prompted, type in your Meeting
ID and select Join
- When prompted, type in your Meeting passcode

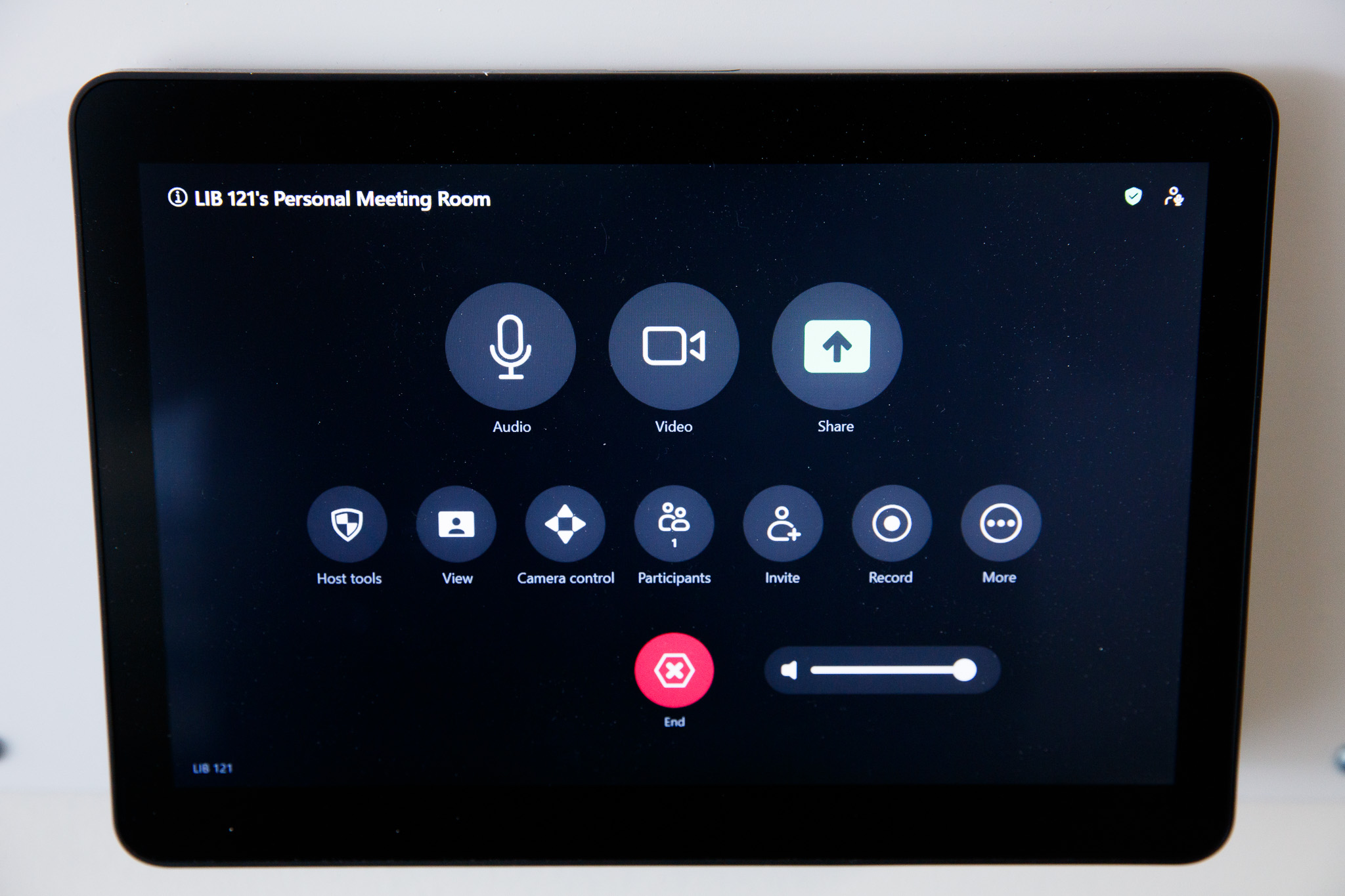

In-meeting controls

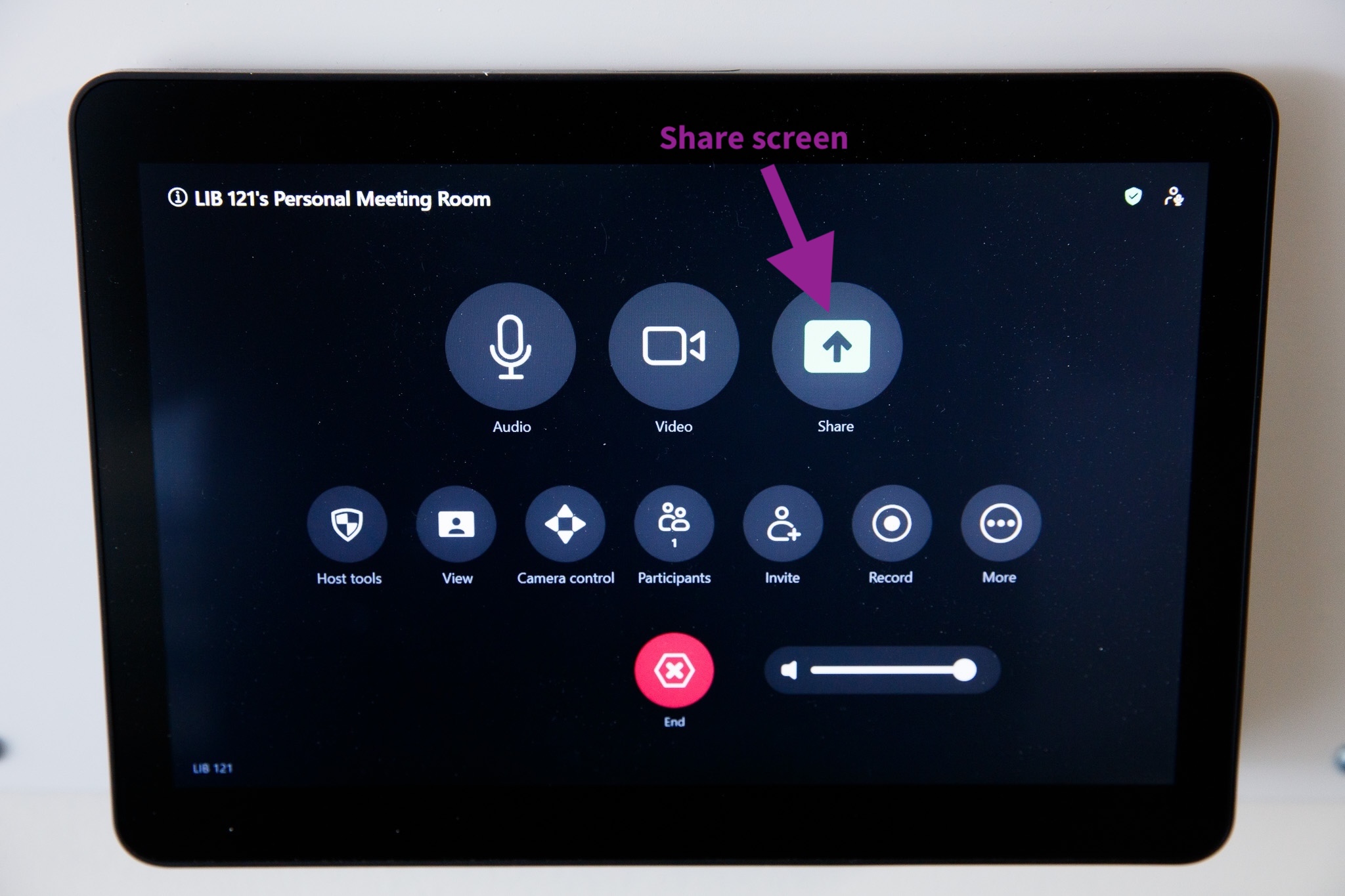

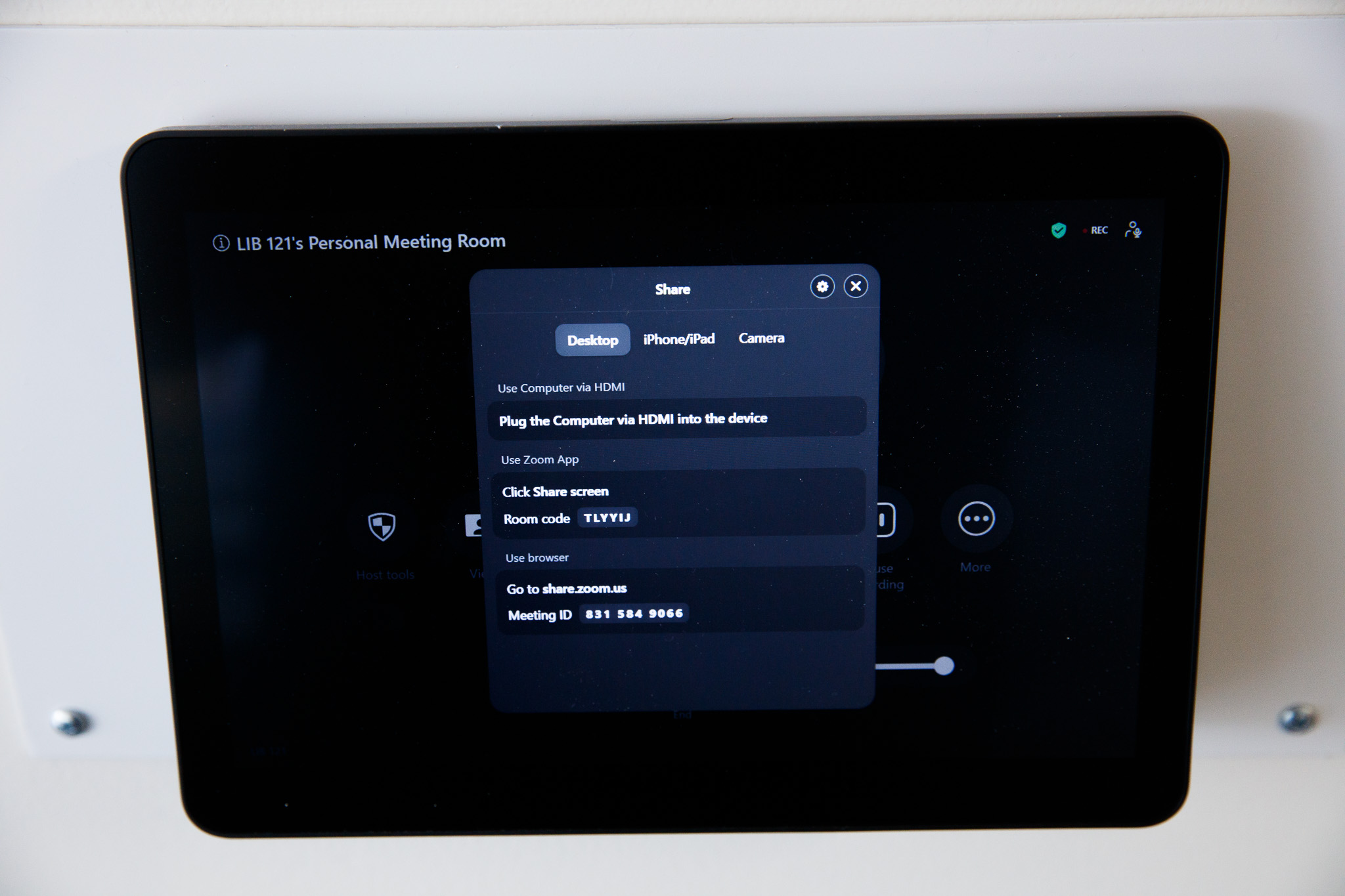

Sharing your screen
- Tap the Share Screen button
- Follow the on screen instructions on the computer whose screen you want to share with your Zoom meeting

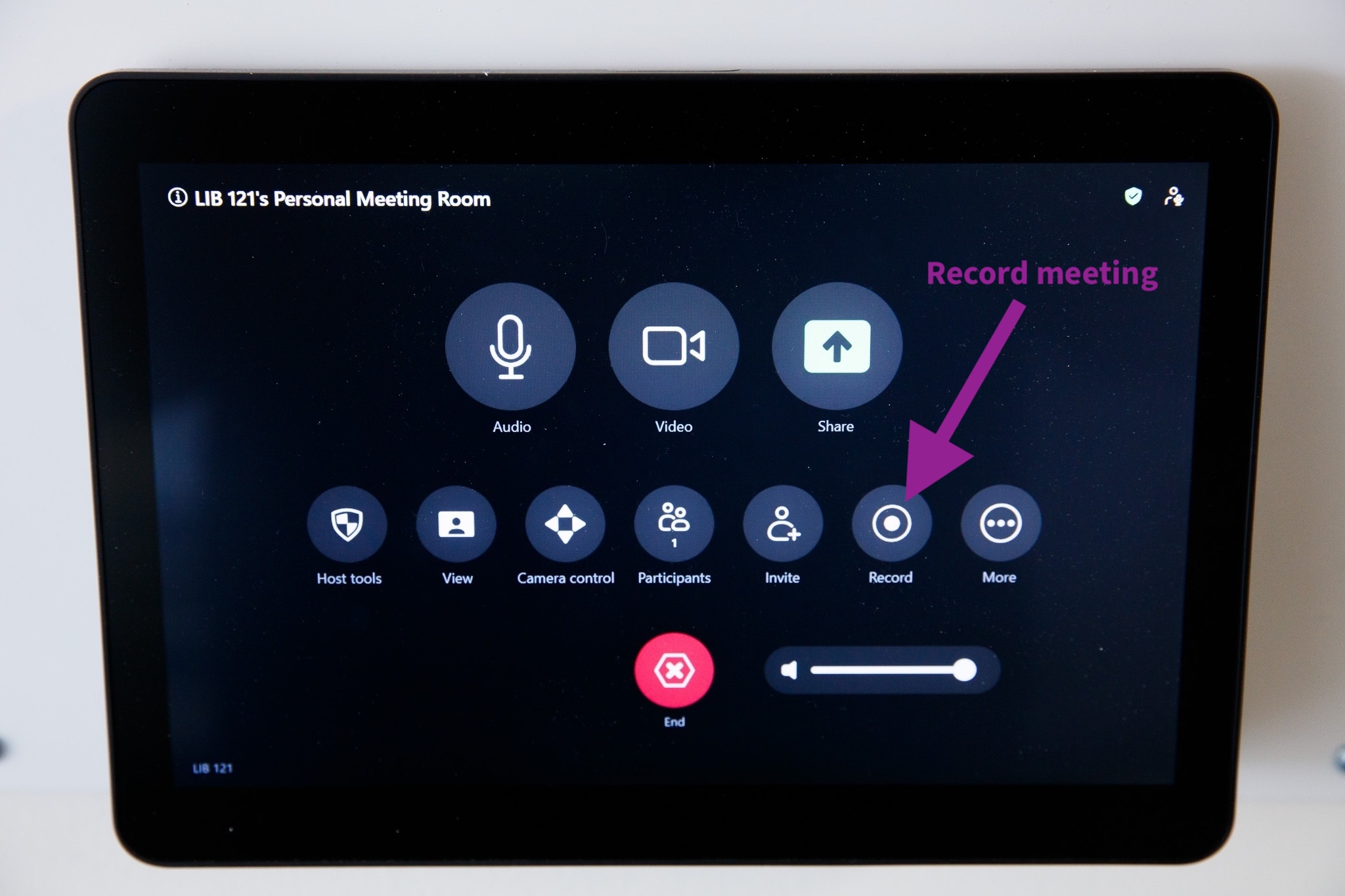

Recording your meeting
- Press the Record button to record your meeting

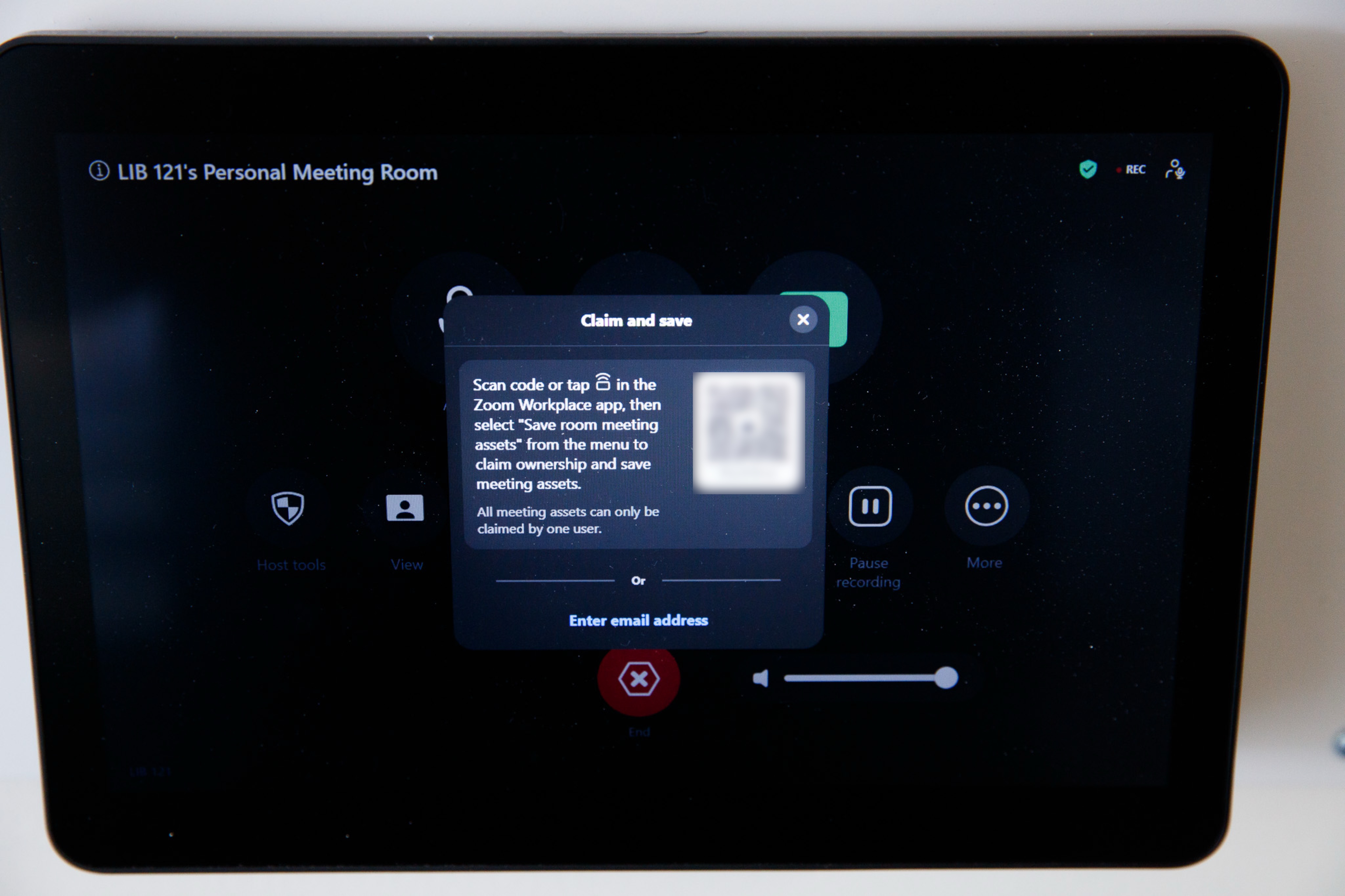

- When prompted, follow the on-screen instructions to claim the meeting so the recording is sent to the correct place. The option to Enter an email address works best if you do not have the Zoom app installed on your phone and logged in with your SFSU account. Remember to use your SFSU Email so the recording is saved correctly.

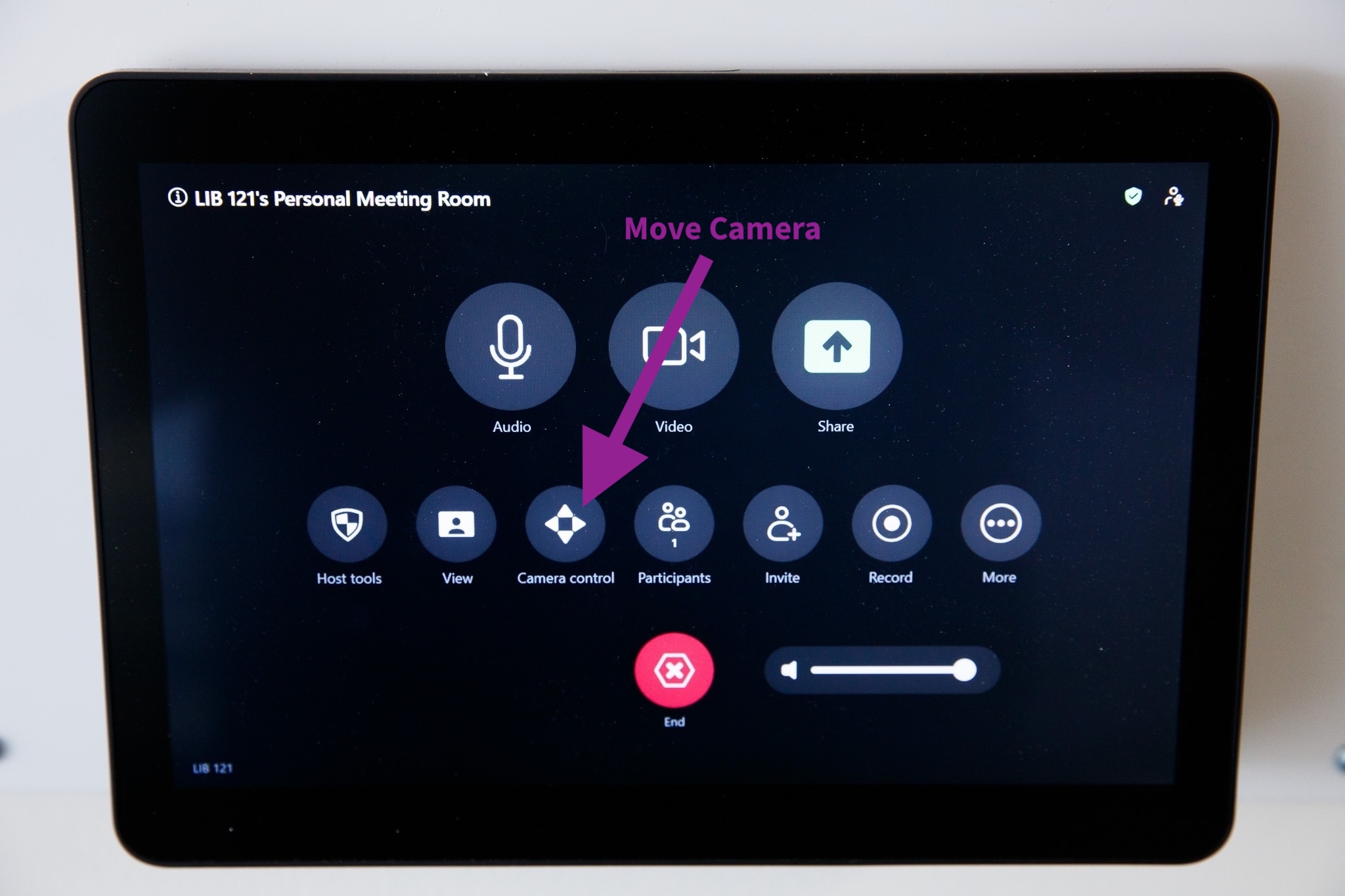

Controlling the camera

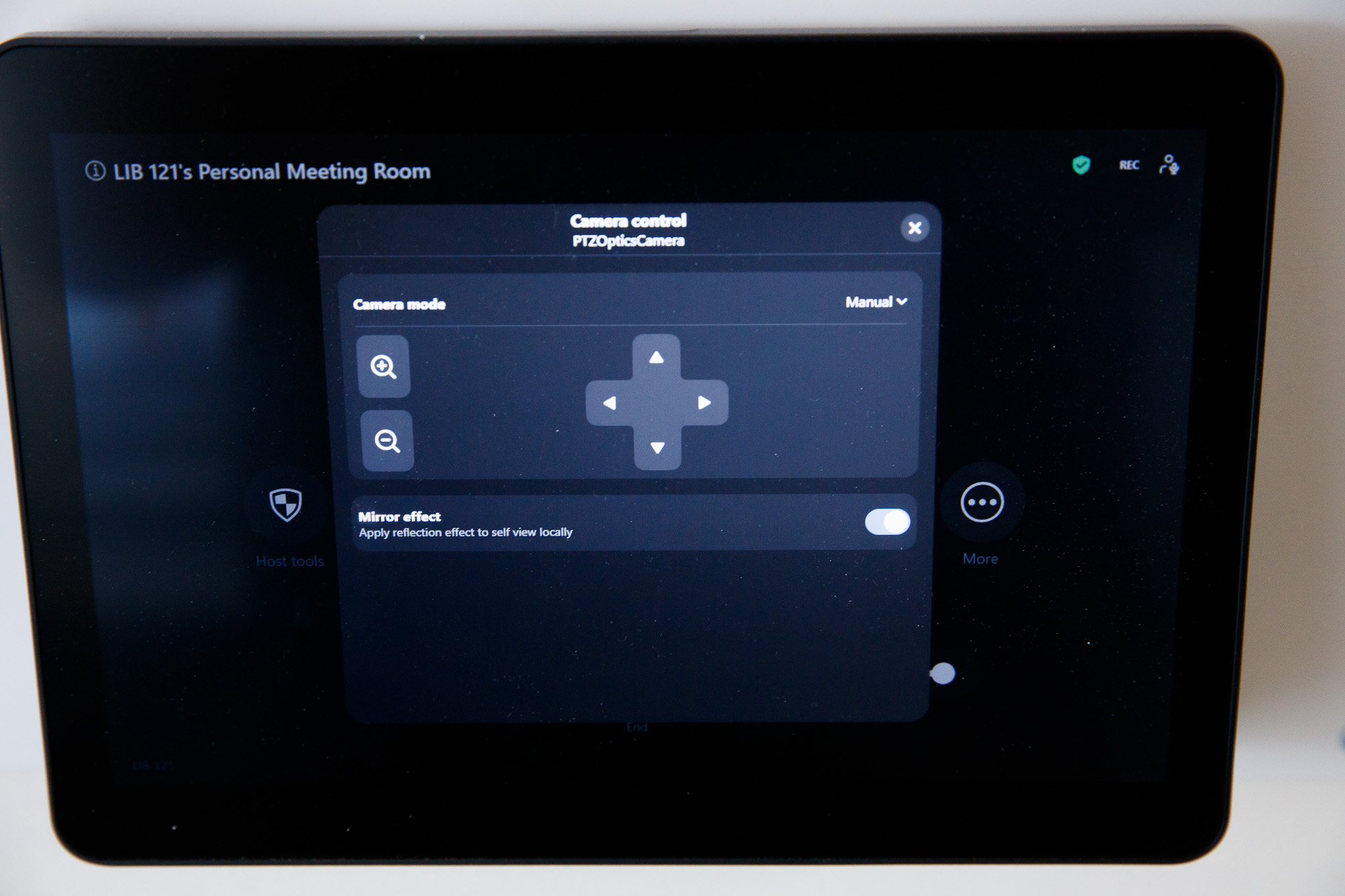

- Tap the Camera Control button to access the camera controls during a meeting
- Move the camera (as well as zoom in and out) with the available controls

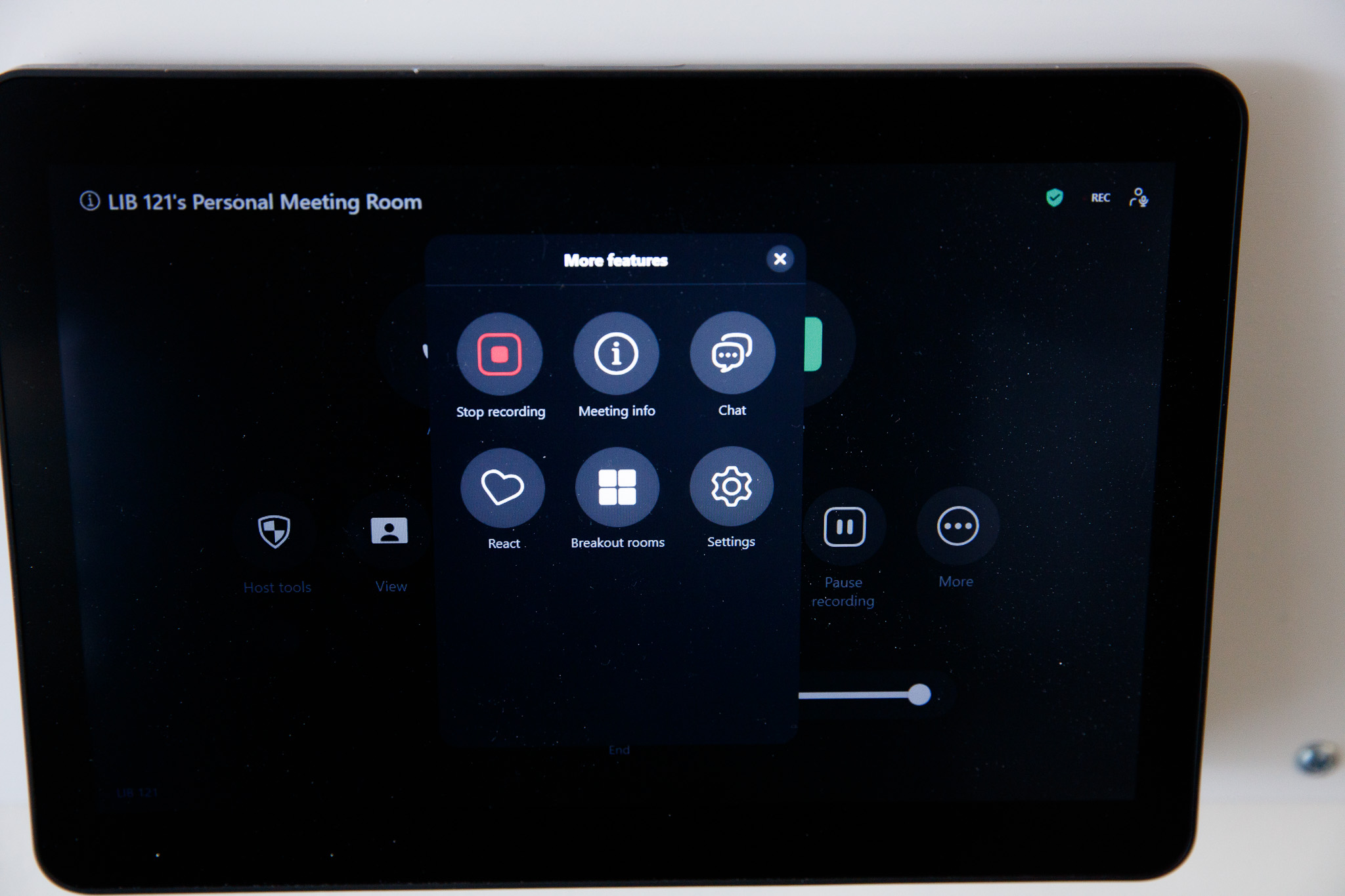

Other controls
Request Additional Help:
M-Th 8am-8pm
F 8am-5pm
(415) 405-5555
LIB 80
