Room GYM 114


Basic Information

Room Type
Lecture
Building
Gymnasium
Scheduled By
Academic Resources
Supported By
Academic Technology
Capacity
49
Support Information
For more information about this room, contact Academic Technology at at@sfsu.edu or via phone at (415)405-5555

Computer Ports & Adapters

In this room you can connect your computer via HDMI. A usb-c to HDMI adapter is provided in the room. Older computers without USB-C and without HDMI built-in can check out an adapter from Academic Technology in LIB 80.

If your computer has... Adapter for HDMI
HDMI — None —
USB-C — None —
Mini DisplayPort MiniDP to HDMI

Audio & Visual Equipment

A/V Equipment In Room? Notes
LCD Projector
LCD TV
VCR/DVD
HDMI A usb-c to HDMI adapter is provided in the room. Older computers without USB-C and without HDMI built-in can check out an adapter from Academic Technology in LIB 80.

Mic
CourseStream
Doc Cam
Zoom Enabled
Blu-ray

TURNING ON THE SYSTEM

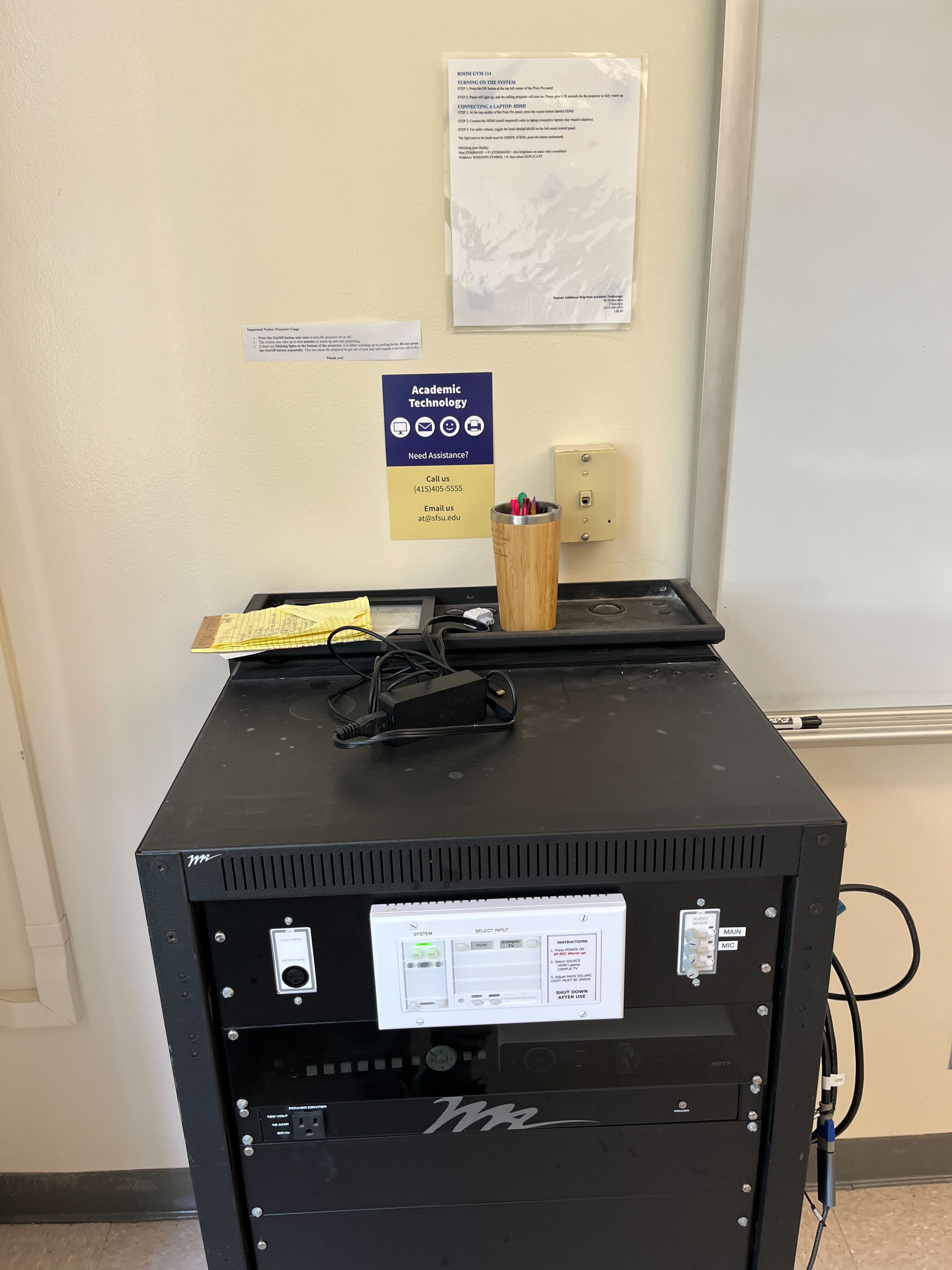

STEP 1: Press the ON button at the top left corner of the Pixie Pro panel

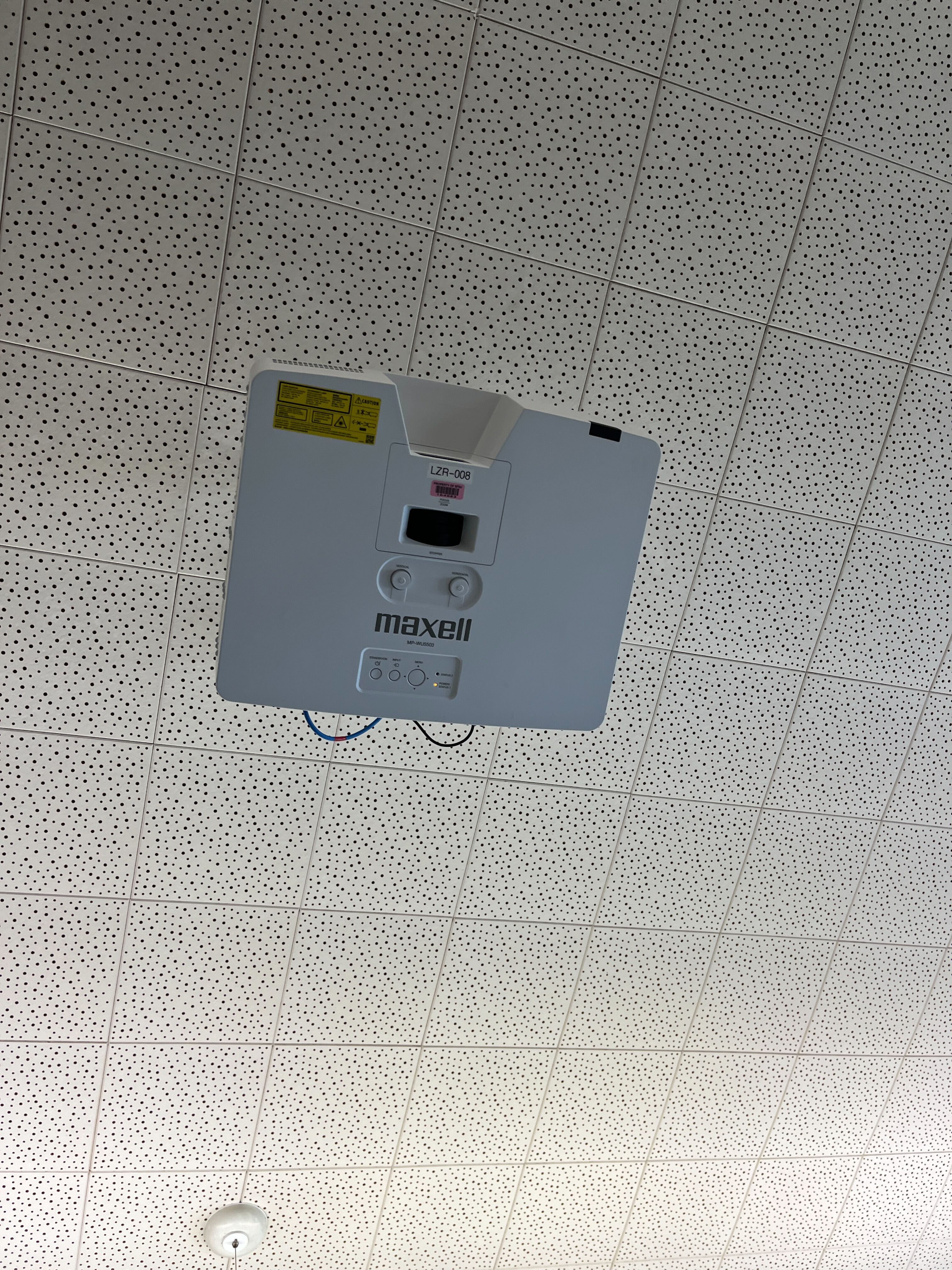

STEP 2: Panel will light up, and the ceiling projector will turn on. Please give it 30 seconds for the projector to fully warm up.

CONNECTING A LAPTOP: HDMI

STEP 1: At the top-middle of the Pixie Pro panel, press the source button labeled HDMI

STEP 2: Connect the HDMI (small trapezoid) cable to laptop (respective laptops may require adapters).

STEP 3: For audio volume, toggle the knob labeled MAIN on the left sound control panel.
The light next to the knob must be GREEN. If RED, press the button underneath.

Mirroring your display

Mac: COMMAND  + F1 (COMMAND + dim brightness on macs with a touchbar)
Windows: WINDOWS SYMBOL + P, then select DUPLICATE

RECEIVING CABLECAST

STEP 1: At the top-middle of the Pixie Pro panel, press the source button labeled CAMPUS TV or TUNER.

STEP 2: Select the desired cable channel using the channel UP/DOWN buttons on the bottom left of the Pixie panel.
Verify the channel at the top of the projected image.

STEP 3: For audio volume, toggle the knob labeled MAIN on the left sound control panel.
The light next to the knob must be GREEN. If RED, press the button underneath.

STEP 4: Call x15103 to start the cablecast.



Request Additional Help:

M-Th 8am-8pm

F 8am-5pm

(415) 405-5555

LIB 80
