Room BH 7
- Room Type
- Burk Hall
- Scheduled By
- College of HSS
- Supported By
- Academic Technology
- Teaching Lab
- Support Information
- For more information about this room, contact Academic Technology at email@example.com or via phone at (415)405-5555
Computer Ports & Adapters
In this room, you can connect your computer to VGA ports. Make sure you have the right adapter(s) before coming to class. Please note that the adapters in this table are just examples. Adapters vary by brand, color, shape, etc.
|If your computer has...||Adapter for VGA|
|USB-C||USB-C to VGA|
|Mini DisplayPort||MiniDP to VGA|
|HDMI||HDMI to VGA|
|VGA||— None —|
Audio & Visual Equipment
|A/V Equipment||In Room?||Notes|
Modern computers will typically require an adapter for VGA. You can reserve one by calling (415)405-5555 or emailing firstname.lastname@example.org. Please include the model number of your computer so you can be matched with the appropriate adapter.
TURNING ON THE SYSTEM

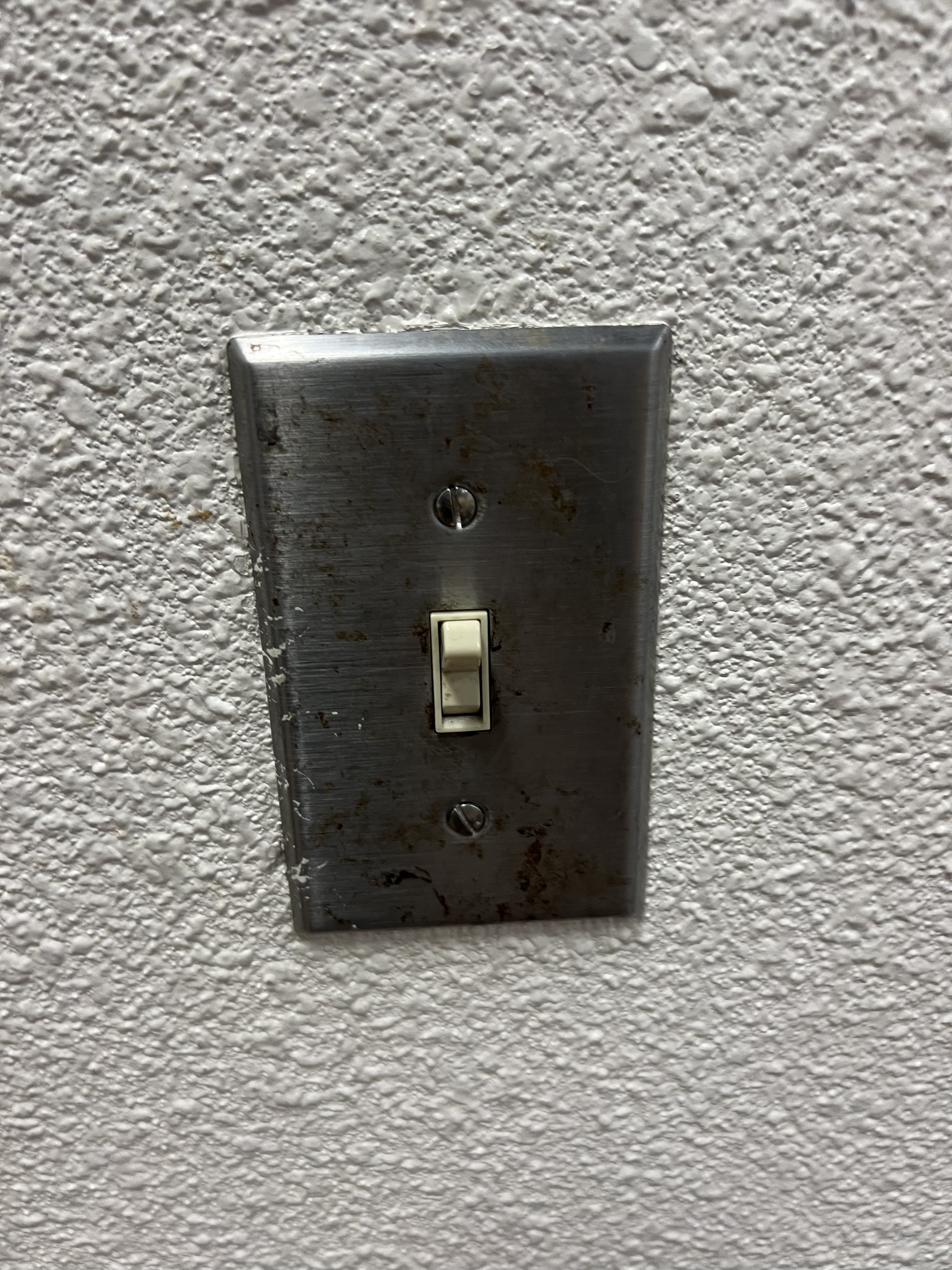

STEP 1: Turn on the main power-switch.
STEP 2: On the projector control panel, press ON once, and wait 30 seconds.
CONNECTING A LAPTOP: VGA OR HDMI
*All consoles come equipped with VGA, but some have HDMI as well. Please refer to the classroom database chart for what's installed in specific classrooms.
STEP 1: On the projector control panel, press COMP to select the appropriate input (respective classrooms may use different inputs):
VGA cable: COMPUTER, LAPTOP or VGA
HDMI cable: HDMI

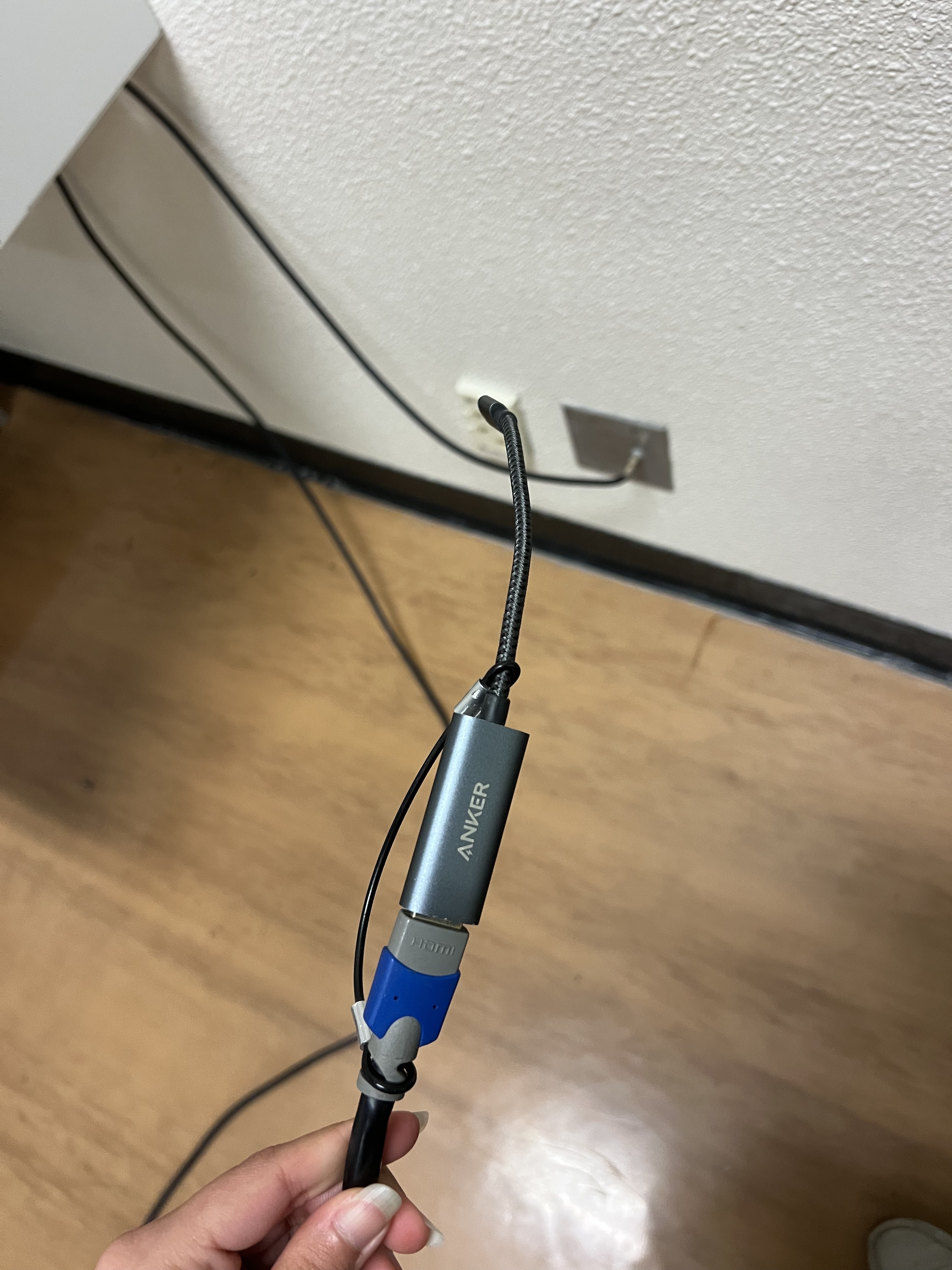

STEP 2: Connect VGA (15-pin) or HDMI (small trapezoid) cable to laptop (respective laptops may require adapters).
(When using VGA, plug the attached audio-cord into laptop's headphone jack for sound)
STEP 3: To get audio, turn on the amplifier. Make sure LEFT OUTPUT and RIGHT OUTPUT is at 12'o clock position.
Adjust volume via the appropriate labeled knob when using:
VGA cable: SOURCE TWO, or VGA AUDIO
HDMI cable: HDMI AUDIO
Mac: COMMAND + F1 (COMMAND + dim brightness on macs with a touchbar)
Windows: WINDOWS SYMBOL + P, then select DUPLICATE
STEP 1: On the projector control panel, press VIDEO. (on the projected image, input should indicate VIDEO)
STEP 2: Turn on the amplifier. Make sure LEFT OUTPUT and RIGHT OUTPUT is at 12'o clock position.
Adjust volume via the MAIN AUDIO knob or SOURCE ONE knob.
STEP 3: Select the desired cable channel on the Pico cable tv tuner.
STEP 4: Call x15103 to start the cablecast.
