Room TH 329
- Room Type
- Thornton Hall
- Scheduled By
- Academic Resources
- Supported By
- Academic Technology
- Support Information
- For more information about this room, contact Academic Technology at firstname.lastname@example.org or via phone at (415)405-5555
Computer Ports & Adapters

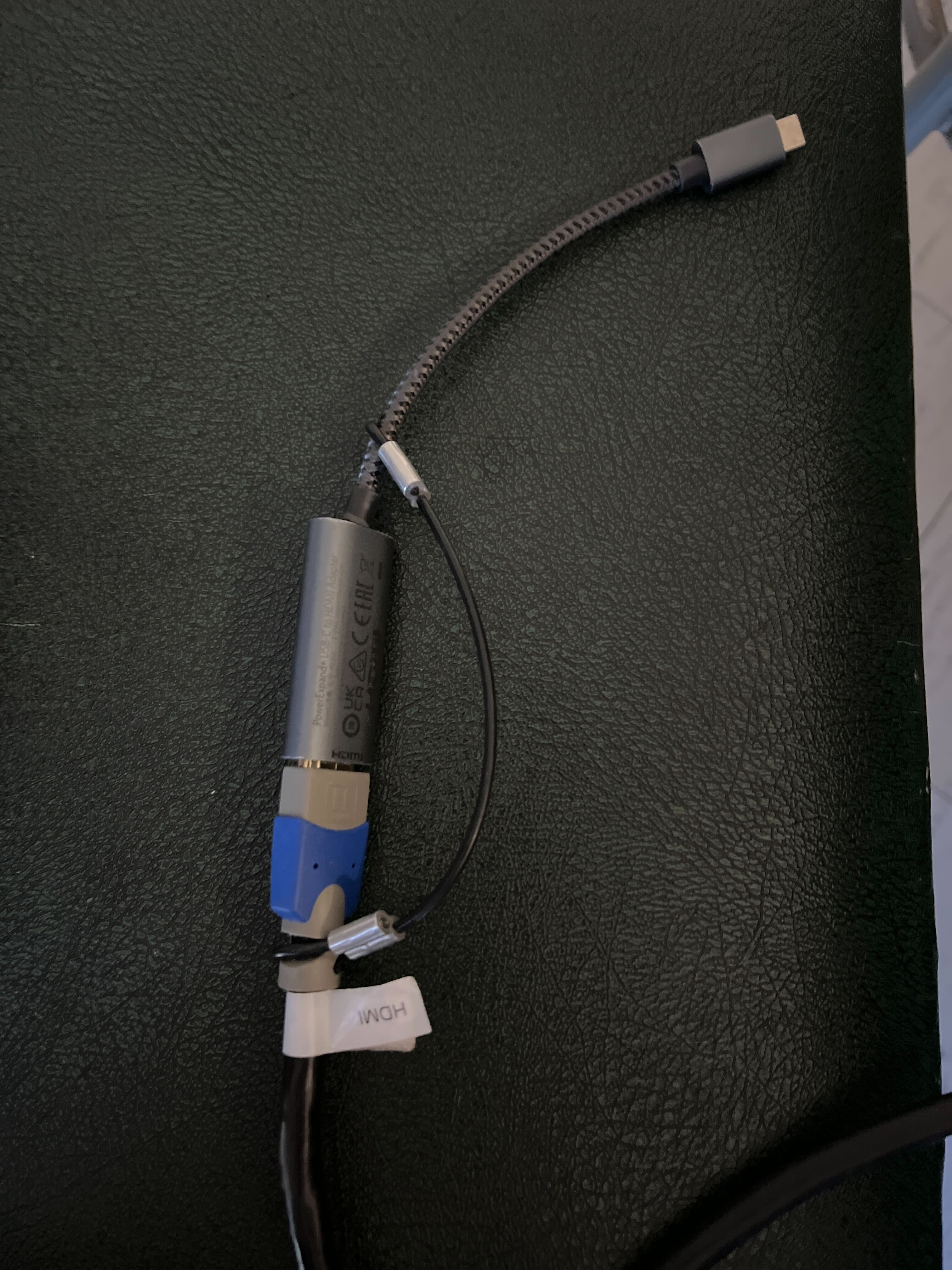

In this room, you can connect your computer to both HDMI and VGA ports. Make sure you have the right adapter(s) before coming to class. Please note that the adapters in this table are just examples. Adapters vary by brand, color, shape, etc.
|If your computer has...||Adapter for HDMI||Adapter for VGA|
|USB-C||USB-C to HDMI||USB-C to VGA|
|Mini DisplayPort||MiniDP to HDMI||MiniDP to VGA|
|HDMI||— None —||HDMI to VGA|
|VGA||— None —||— None —|
Audio & Visual Equipment
|A/V Equipment||In Room?||Notes|
Computers without a built-in HDMI port will require an adapter. You can
reserve one by calling (415)405-5555 or emailing email@example.com. Please
include the model number of your computer so you can be matched with the
Modern computers will typically require an adapter for VGA. You can reserve one by calling (415)405-5555 or emailing firstname.lastname@example.org. Please include the model number of your computer so you can be matched with the appropriate adapter.
TURNING ON THE SYSTEM
STEP 1: Turn on the main power-switch.
STEP 2: On the projector control panel, press ON once, and wait 30 seconds.
*In certain classrooms, the projector controls may be inside the bottom drawer.
CONNECTING A LAPTOP: VGA OR HDMI
*All consoles come equipped with VGA, but some have HDMI as well. Please refer to the classroom database chart for what's installed in specific classrooms.
STEP 1: On the projector control panel, press COMP to select the appropriate input (respective classrooms may use different inputs):
VGA cable: COMPUTER, LAPTOP, or VGA
HDMI cable: HDMI
STEP 2: Connect VGA (15-pin) or HDMI (small trapezoid) cable to laptop (respective laptops may require adapters).
(When using VGA, plug the attached audio-cord into laptop's headphone jack for sound)
STEP 3: At the AV1 Input Selector, press in the appropriate button when using:
VGA cable: Button 4, labeled COMPUTER AUDIO or VGA AUDIO
HDMI cable: Button 5, labeled HDMI
STEP 4: To get audio, turn on the amplifier (PA Power Switch). Adjust volume using the Master Volume Control knob.Mirroring your display
Mac: COMMAND + F1 (COMMAND + dim brightness on macs with a touchbar)
Windows: WINDOWS SYMBOL + P, then select DUPLICATE
STEP 1: On the projector control panel, press VIDEO. (on the projected image, input should indicate VIDEO).
STEP 2: At the AV1 Input Selector, press in button 1 labeled CABLE TV.
STEP 3: Turn on the amplifier (PA Power Switch). Adjust volume using the Master Volume Control knob.
STEP 4: Select the desired cable channel using the keypad on the Sony cable TV channel selector (CHANNEL # + ENTER).
STEP 5: Call x15103 to start the cablecast.
Request Additional Help:
