Room BH 6
Basic Information
- Room Type
- Collaborative Space
- Building
- Burk Hall
- Scheduled By
- Academic Resources
- Supported By
- Academic Technology
- Capacity
- N/A
- Support Information
- For more information about this room, contact Academic Technology at at@sfsu.edu or via phone at (415)405-5555
Images
Computer Ports & Adapters

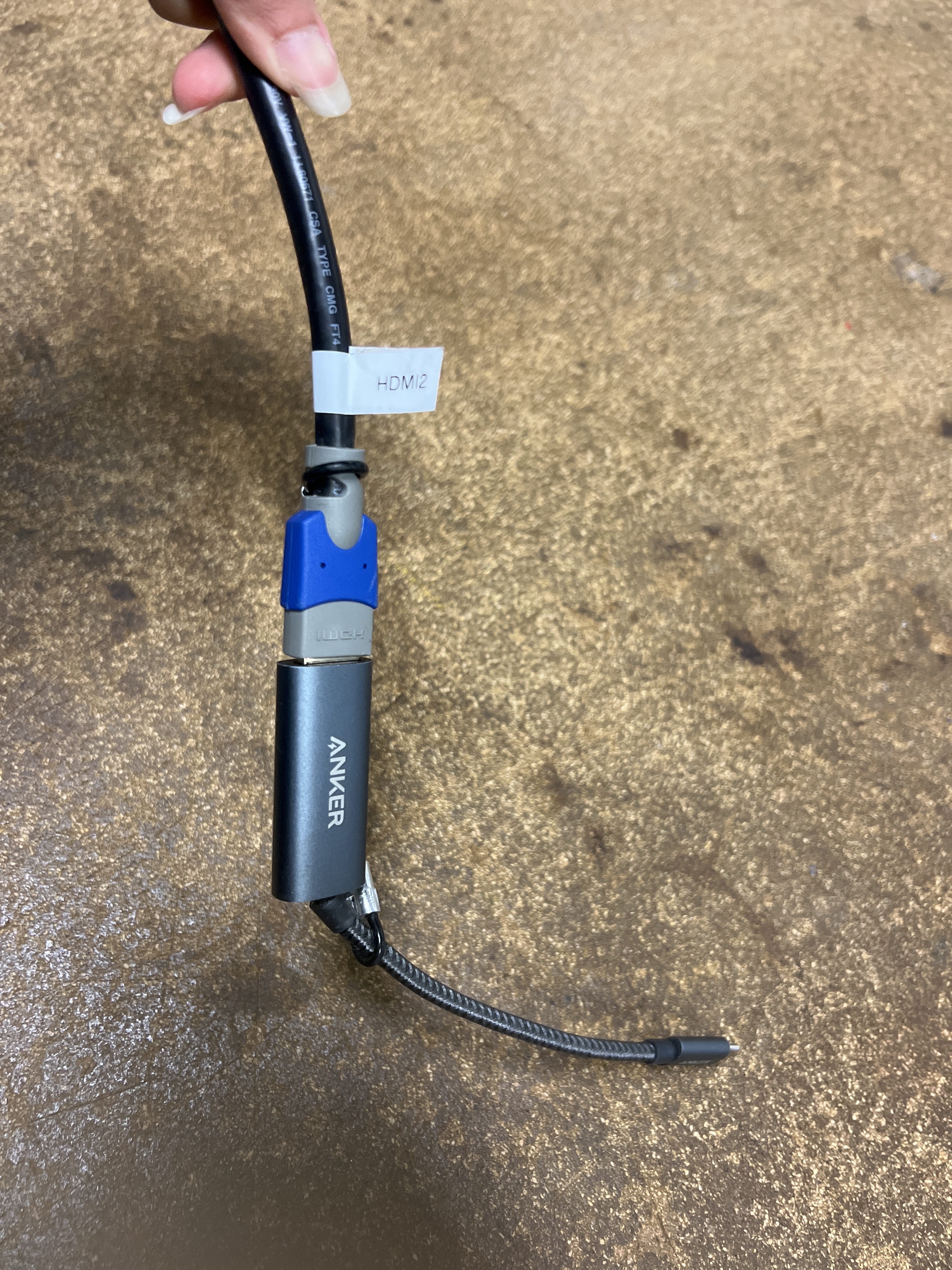

In this room you can connect your computer via HDMI. A usb-c to HDMI adapter is provided in the room. Older computers without USB-C and without HDMI built-in can check out an adapter from Academic Technology in LIB 80.
| If your computer has... | Adapter for HDMI |
|---|---|
HDMI
|
— None — |
USB-C
|
— None — |
Mini DisplayPort
|
MiniDP to HDMI
|
Audio & Visual Equipment
| A/V Equipment | In Room? | Notes |
|---|---|---|
LCD Projector
|
||
LCD TV
|
||
VCR/DVD
|
||
HDMI
|
A usb-c to HDMI adapter is provided in the room. Older computers without USB-C and without HDMI built-in can check out an adapter from Academic Technology in LIB 80. |
|
Mic
|
||
CourseStream
|
||
Doc Cam
|
||
Zoom Enabled
|
||
Blu-ray
|
TURNING ON THE SYSTEM
STEP 1: Use the attached remote-control, point at the bottom-right of the TV, then press the power button.
CONNECTING A LAPTOP: VGA OR HDMI
STEP 1: On the remote-control, press SOURCE. The source row will appear on the top of the screen.
Use the arrow buttons to select the appropriate source when using:
VGA cable: HDMI 1
HDMI cable: HDMI 2
*The two sources may be flipped due to outside intervention. Try the other if no image.
STEP 2: Connect VGA (15-pin) or HDMI (small trapezoid) cable to laptop (respective laptops may require adapters).
(When using VGA, plug the attached audio-cord into laptop's headphone jack for sound)
STEP 3: For audio volume, use the remote-control's volume buttons to toggle up or down.
Mirroring your displayMac: COMMAND + F1 (COMMAND + dim brightness on macs with a touchbar)
Windows: WINDOWS SYMBOL + P, then select DUPLICATE
USING THE VCR/DVD PLAYER
*Certain classrooms may have the VCR/DVD deck removed. Please refer to the classroom database chart for what's installed in specific classrooms.
STEP 1: On the remote-control, press SOURCE. The source row will appear on the top of the screen.
Use the arrow buttons to select the source labeled AV.
STEP 2: For audio volume, use the remote-control's volume buttons to toggle up or down.
STEP 3: Turn on VCR/DVD combo player. Insert media and press play.
Request Additional Help:
M-Th 8am-8pm
F 8am-5pm
(415) 405-5555
LIB 80
