Room BH 35
Basic Information
- Room Type
- Lecture
- Building
- Burk Hall
- Scheduled By
- Secondary Ed
- Supported By
- Academic Technology
- Capacity
- 25
- Support Information
- For more information about this room, contact Academic Technology at at@sfsu.edu or via phone at (415)405-5555
Images
Computer Ports & Adapters
In this room, you can connect your computer to both HDMI and VGA ports. Make sure you have the right adapter(s) before coming to class. Please note that the adapters in this table are just examples. Adapters vary by brand, color, shape, etc.
| If your computer has... | Adapter for HDMI | Adapter for VGA |
|---|---|---|
USB-C
|
USB-C to HDMI
|
USB-C to VGA
|
Mini DisplayPort
|
MiniDP to HDMI
|
MiniDP to VGA
|
HDMI
|
— None — |
HDMI to VGA
|
VGA
|
— None — | — None — |
Audio & Visual Equipment
| A/V Equipment | In Room? | Notes |
|---|---|---|
LCD Projector
|
||
LCD TV
|
||
VCR/DVD
|
||
HDMI
|

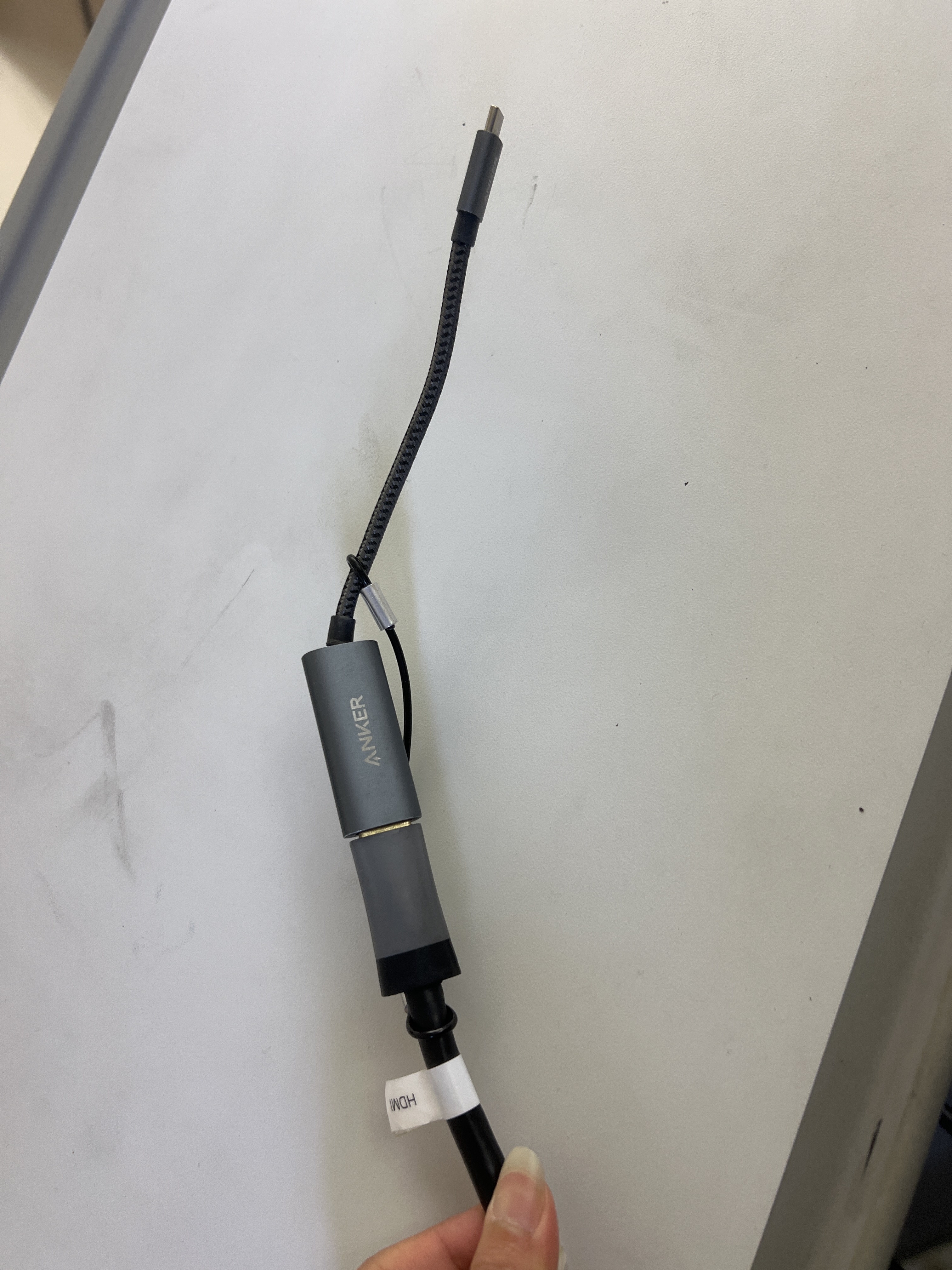

A usb-c to HDMI adapter is provided in the room. Older computers without USB-C and without HDMI built-in can check out an adapter from Academic Technology in LIB 80. |
|
VGA
|
Modern computers will typically require an adapter for VGA. You can reserve one by calling (415)405-5555 or emailing at@sfsu.edu. Please include the model number of your computer so you can be matched with the appropriate adapter. |
|
Mic
|
||
CourseStream
|
||
Doc Cam
|
||
Zoom Enabled
|
||
Blu-ray
|
TURNING ON THE SYSTEM
STEP 1: Press the ON button at the top left corner of the Pixie panel
STEP 2: Pixie panel will light up; ceiling projector will be on after 30-seconds.
CONNECTING A LAPTOP: VGA OR HDMI
STEP 1: At the top-middle of the Pixie panel, press the appropriate source button when using:
VGA cable: LAPTOP or VGA
HDMI cable: HDMI
STEP 2: Connect VGA (15-pin) or HDMI (small trapezoid) cable to laptop (respective laptops may require adapters).
(When using VGA, plug the attached audio-cord into laptop's headphone jack for sound)
STEP 3: For audio volume, use the UP/DOWN volume buttons on the left side of the Pixie panel to toggle.
Mirroring your displayMac: COMMAND + F1 (COMMAND + dim brightness on macs with a touchbar)
Windows: WINDOWS SYMBOL + P, then select DUPLICATE
RECEIVING CABLECAST
STEP 1: At the top-middle of the Pixie panel, press the source button labeled TUNER or CAMPUS TV.
STEP 2: Select the desired cable channel using the channel UP/DOWN buttons on the bottom left of the Pixie panel.
Verify the channel at the top of the projected image.
STEP 3: For audio volume, use the up/down volume buttons on the left side of the Pixie panel to toggle.
STEP 4: Call x15103 to start the cablecast.
Request Additional Help:
M-Th 8am-8pm
F 8am-5pm
(415) 405-5555
LIB 80
