Room BH 346C


Basic Information

Room Type
Lecture
Building
Burk Hall
Scheduled By
School of Nursing
Supported By
Academic Technology
Capacity
25
Support Information
For more information about this room, contact Academic Technology at at@sfsu.edu or via phone at (415)405-5555

Computer Ports & Adapters

In this room, you can connect your computer to VGA ports. Make sure you have the right adapter(s) before coming to class. Please note that the adapters in this table are just examples. Adapters vary by brand, color, shape, etc.

If your computer has... Adapter for VGA
USB-C USB-C to VGA
Mini DisplayPort MiniDP to VGA
HDMI HDMI to VGA
VGA — None —

Audio & Visual Equipment

A/V Equipment In Room? Notes
LCD Projector
LCD TV
VCR/DVD
HDMI
VGA Modern computers will typically require an adapter for VGA. You can reserve one by calling (415)405-5555 or emailing at@sfsu.edu. Please include the model number of your computer so you can be matched with the appropriate adapter.
Mic Microphone equipped rooms have in-room amplification
CourseStream
Doc Cam
Zoom Enabled
Blu-ray

TURNING ON THE SYSTEM

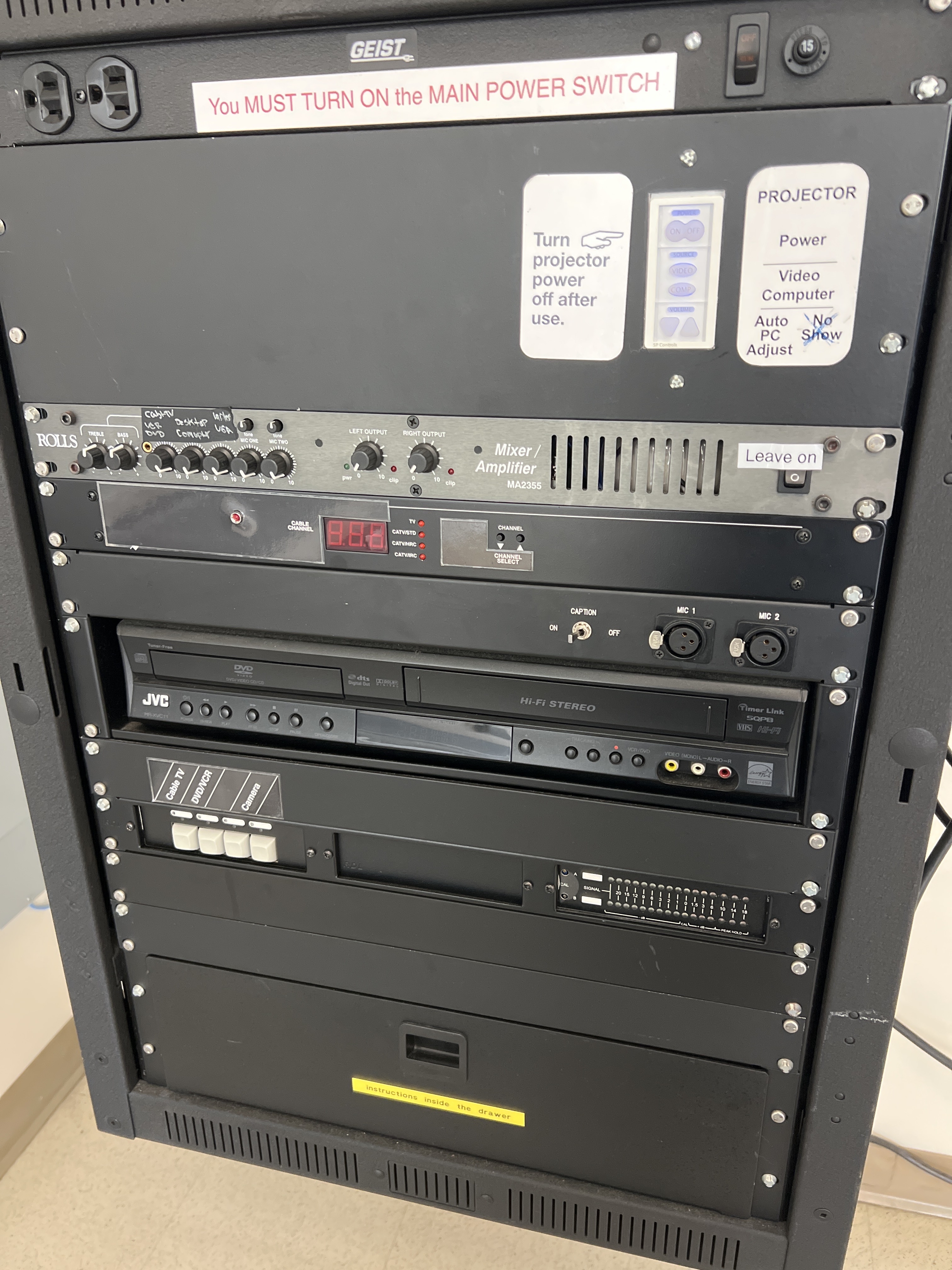

STEP 1: Turn on the main power-switch.

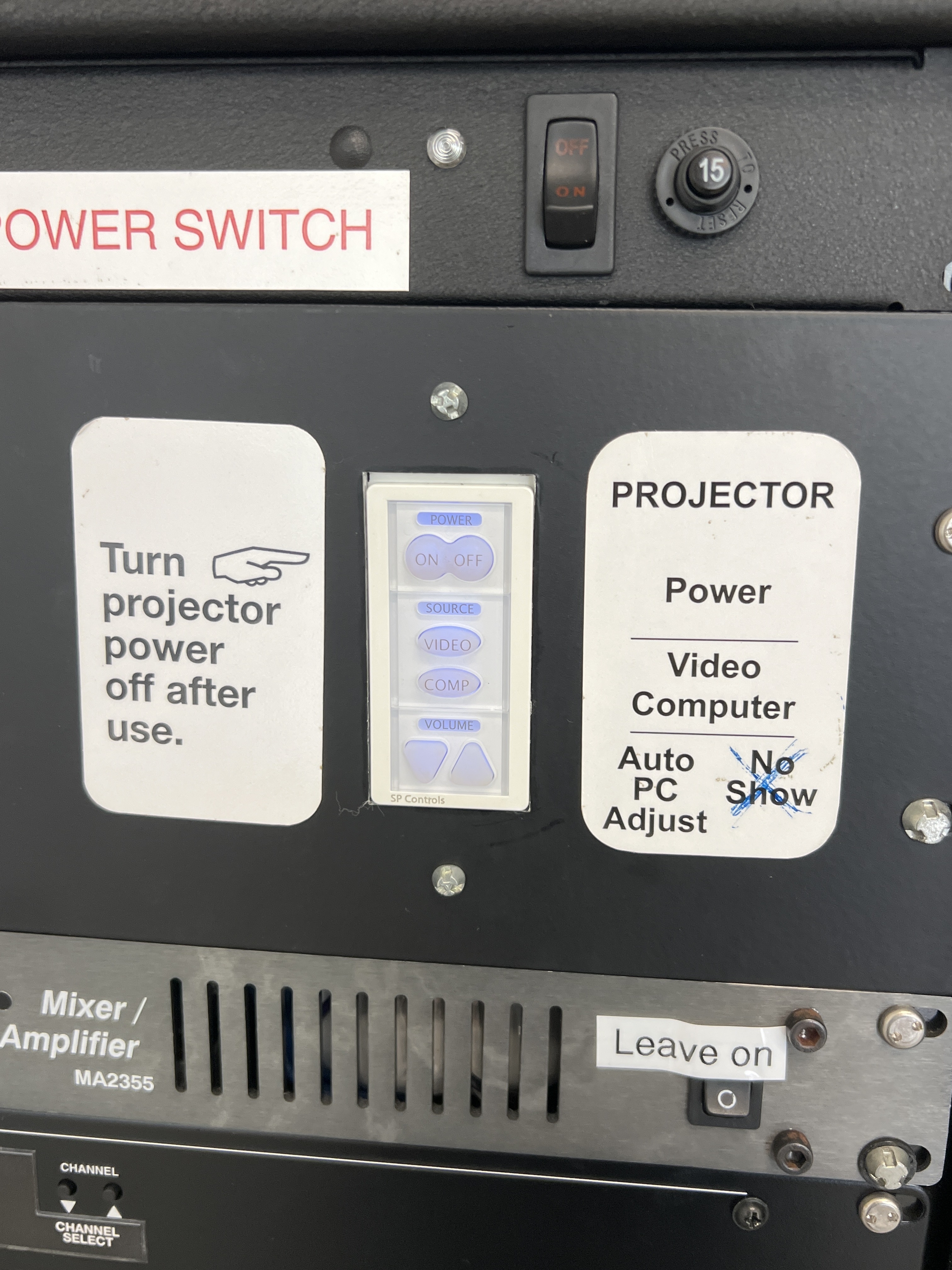

STEP 2: On the projector control panel, press ON once, and wait 30 seconds.

CONNECTING A LAPTOP: VGA

STEP 1: On the projector control panel, press COMP (on the projected image, input should indicate COMPUTER or LAPTOP).

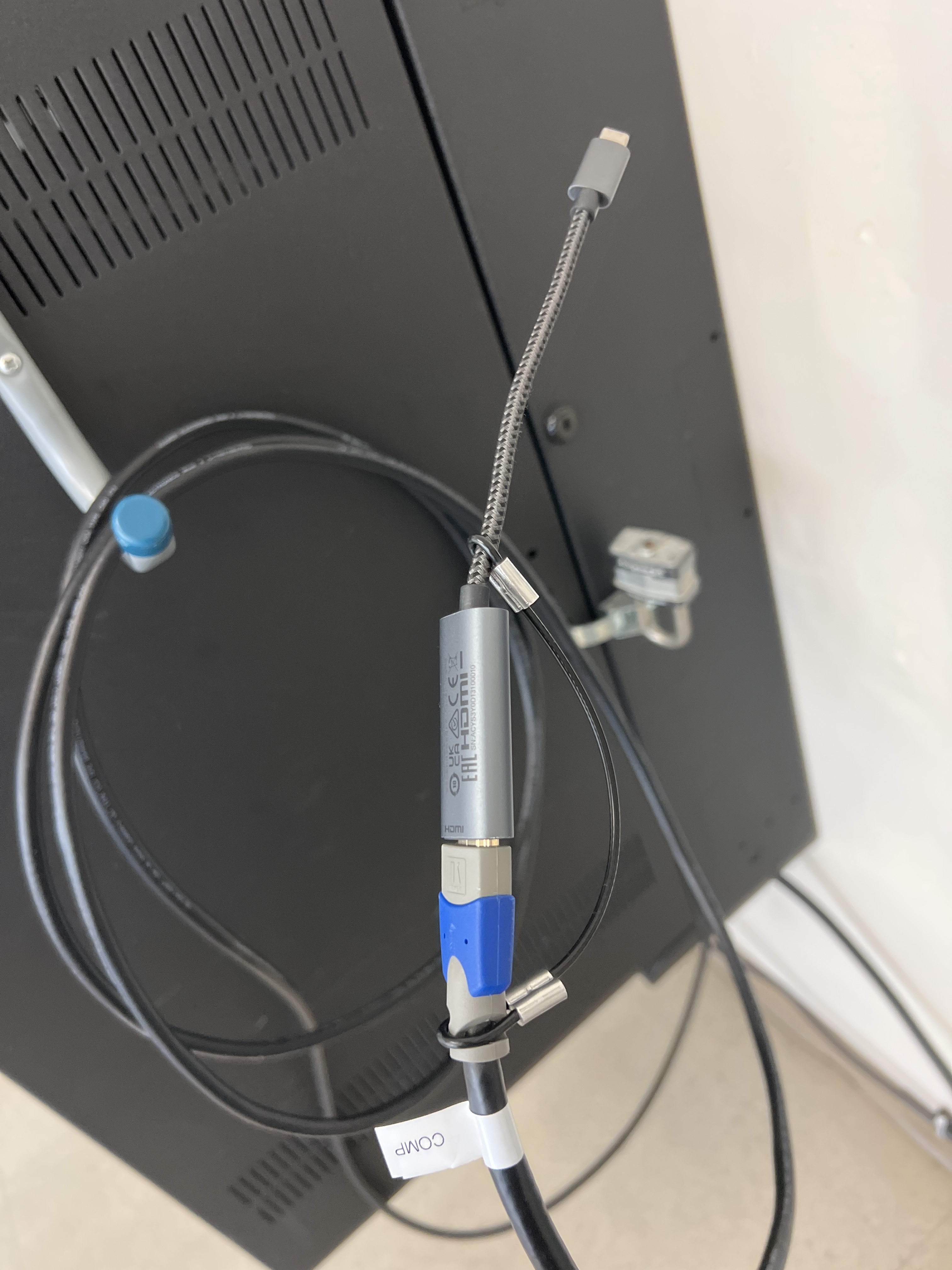

STEP 2: Connect VGA (15-pin) cable to laptop (respective laptops may require adapters).
Plug the attached audio-cord into laptop's headphone jack for sound.

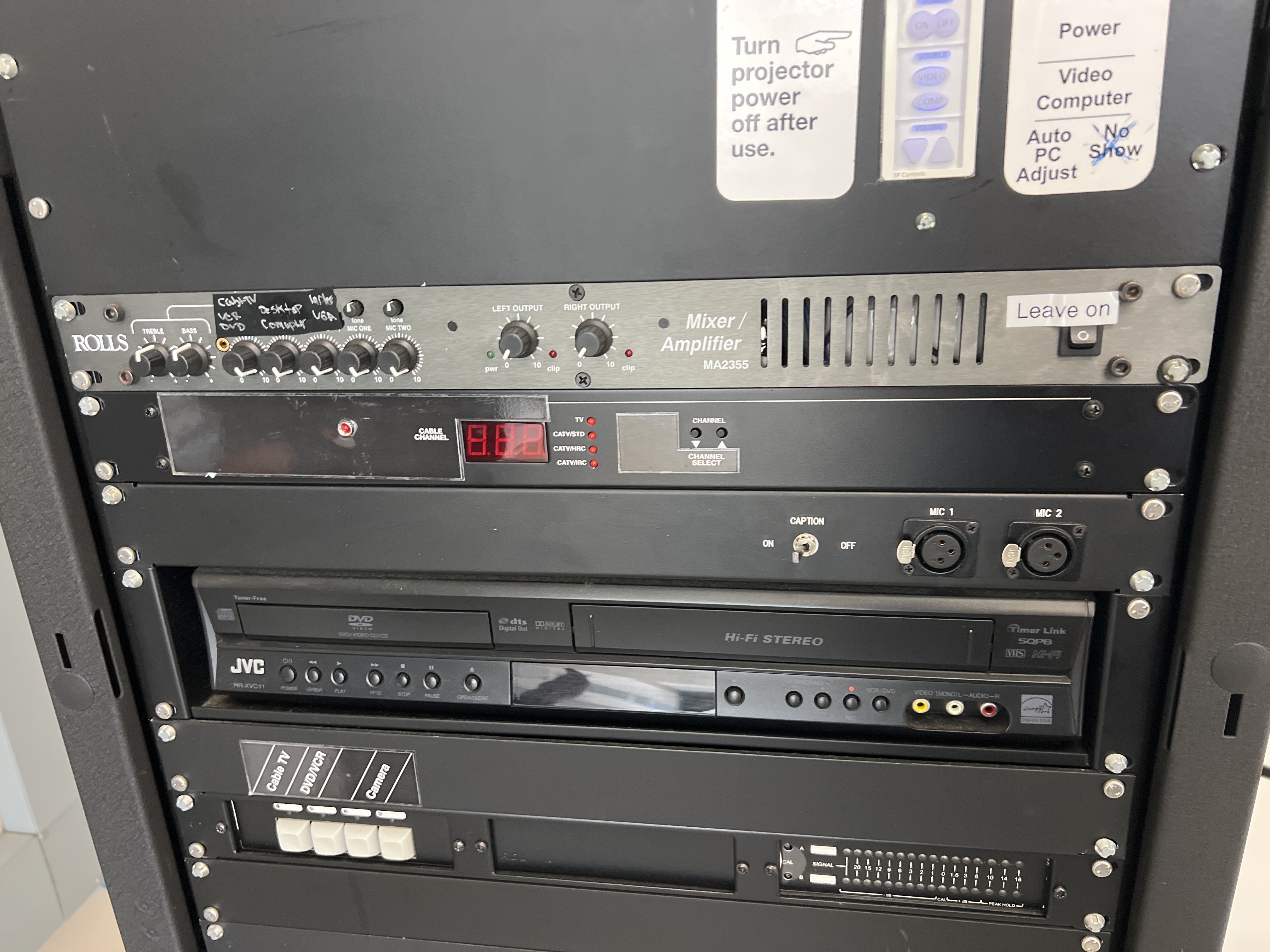

STEP 3: To get audio, turn on the amplifier. Make sure LEFT OUTPUT and RIGHT OUTPUT is at 12'o clock position.
Adjust volume via the COMPUTER AUDIO or SOURCE ONE knob.

Mirroring your display

Mac: COMMAND  + F1 (COMMAND + dim brightness on macs with a touchbar)
Windows: WINDOWS SYMBOL + P, then select DUPLICATE

RECEIVING CABLECAST

STEP 1: On the projector control panel, press VIDEO. (on the projected image, input should indicate VIDEO).

STEP 2: On the video switcher, press in the white square labeled CABLE TV.

STEP 3: Turn on the amplifier. Make sure LEFT OUTPUT and RIGHT OUTPUT is at 12'o clock position.
Adjust volume via the MAIN AUDIO knob or SOURCE ONE knob.

STEP 4: Select the desired cable channel on the Pico cable tv tuner.

STEP 5: Call x15103 to start the cablecast.

USING THE VCR/DVD PLAYER

STEP 1: On the projector control panel, press VIDEO. (on the projected image, input should indicate VIDEO).

STEP 2: On the video switcher, press in the white square labeled VCR/DVD.

STEP 3: Turn on the amplifier. Make sure LEFT OUTPUT and RIGHT OUTPUT is at 12'o clock position.
Adjust volume via the MAIN AUDIO knob or SOURCE ONE knob.

STEP 4: Turn on VCR/DVD combo player. Insert media and press play.



Request Additional Help:

M-Th 8am-8pm

F 8am-5pm

(415) 405-5555

LIB 80
